The ORIGINAL integrated downlight has been UPGRADED
Diffused design for a modern architectural finish 90mm cut-out; 1.2m flex and plug Dimmable (Universal dimmers) Certified to carry the IC-F mark (Covered and Abutted) Warm White (3000K – 800 lm) Cool White (4000K – 820 lm) Snap-on stainless steel fascia option.
16W replaces 2x18W PL-C/PL-T compact fluoros 24W replaces 2x26W PL-C/PL-T compact fluoros Cuts power costs by up to 40%
Ideal for retrofitting existing retail and commercial installations Architectural finish Dependable long-life performance reduces ongoing maintenance
Economical and energy-efficient Surface-mounted on ceilings and walls Rugged IP65 casing for indoor or outdoor use.
Bright 800 lumens light output Economical running over many years IP65 Low maintenance fitting Environmentally superior

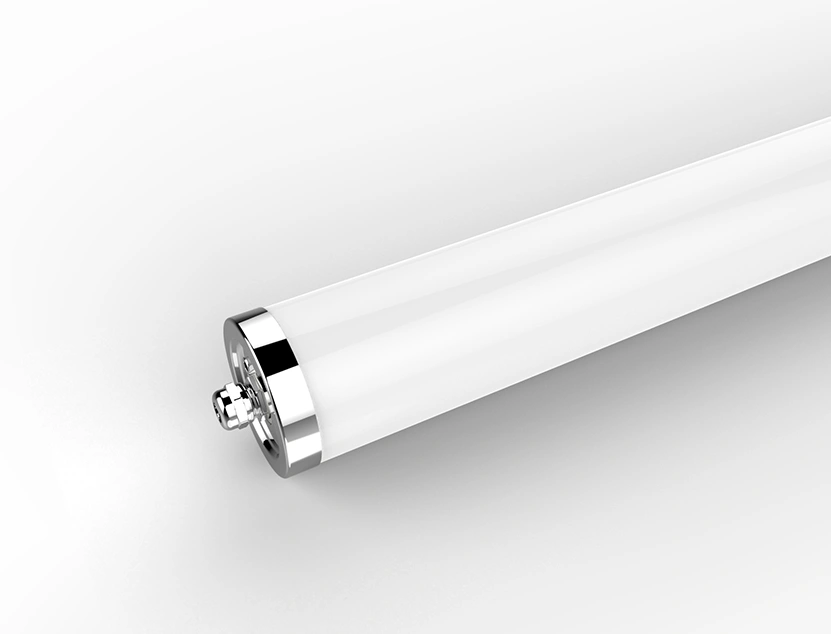

Higher output - 1800 lumens. Excellent value, highly reliable tube. Energy efficient 1200mm LED tube.
Extra bright output - 1800 lumens
Reduces power consumption by up to 60% High quality diffused appearance Safety first construction
Brighter output - 2000 lumens for 1200mm tube Poly-carbonate construction - no glass Comes with fuse for retrofitting into existing fluorescent battens Daylight only - 6500K.
Bright uniform light distribution 3800 lumens output (40W) 1600 lumens (20W) Natural White colour 5000K Easy to install Exceptional value for money
Exclusive Quick-Fit design Unique 3 step installation to save time and reduce cost
Quality diffused linear batten Replaces 2 x 36W Fluoro batten & ballasts Bright white 5000K Natural White light High output - 4300 lumens Sleek low-profile design

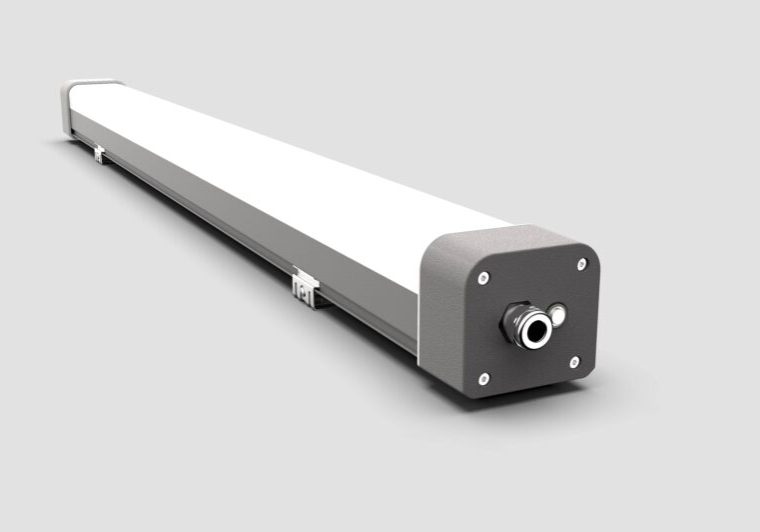

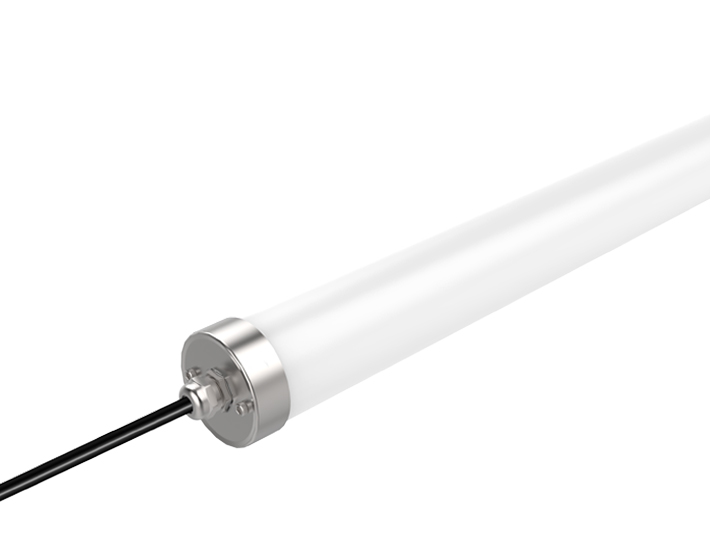

Linear SMD LED design – no tubes IP66 protection against ingress IK10 rated for impact resistance.

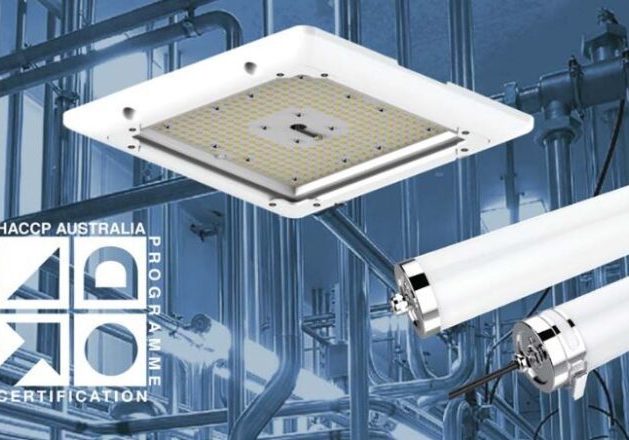

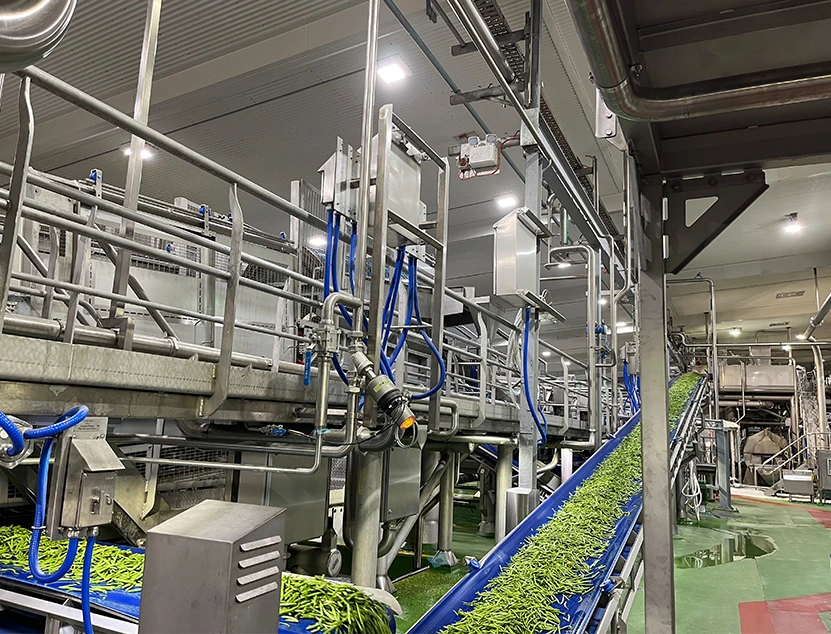

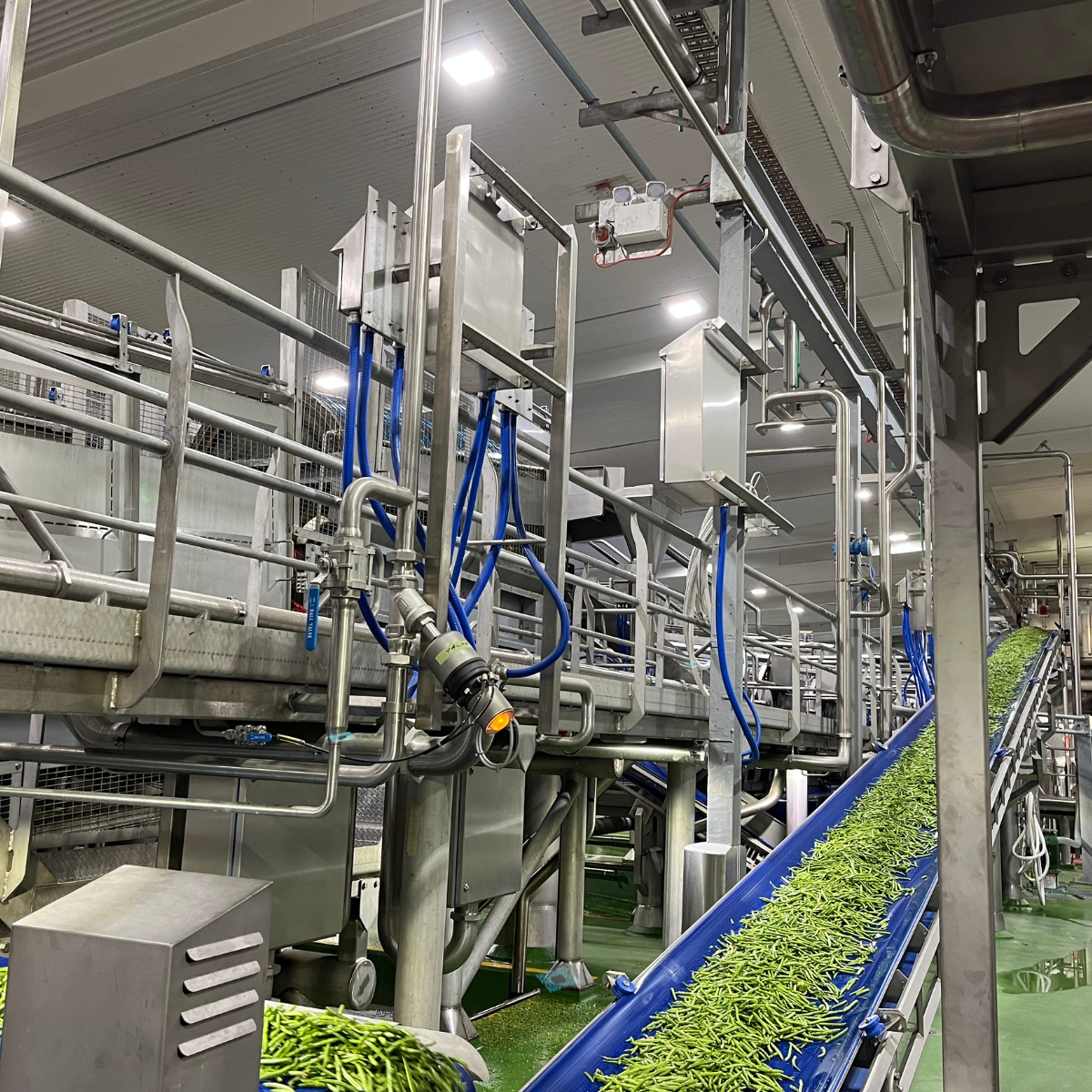

Capable of withstanding challenging sanitising and wash down procedures Easily cleaned surfaces to meet food standards Replaces a twin 36W fluoro batten Stainless steel and PMMA construction Super-efficient 4700lm light output @ 130lm/W Natural white 5000K colour temperature.

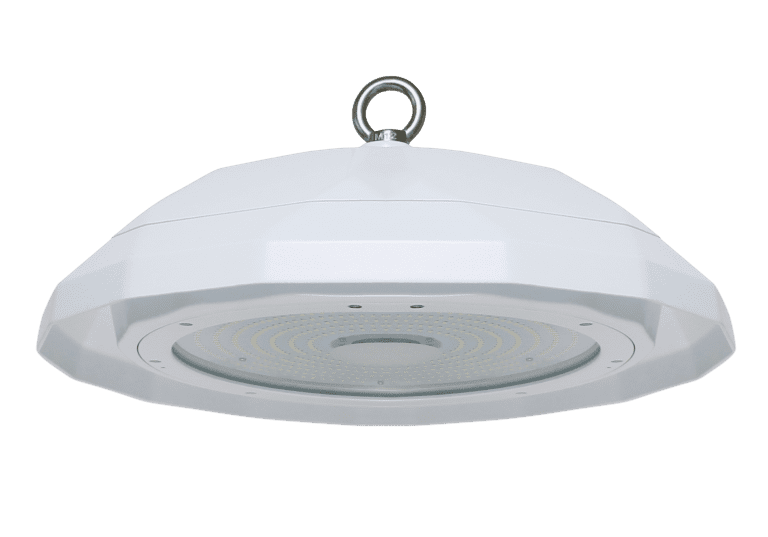

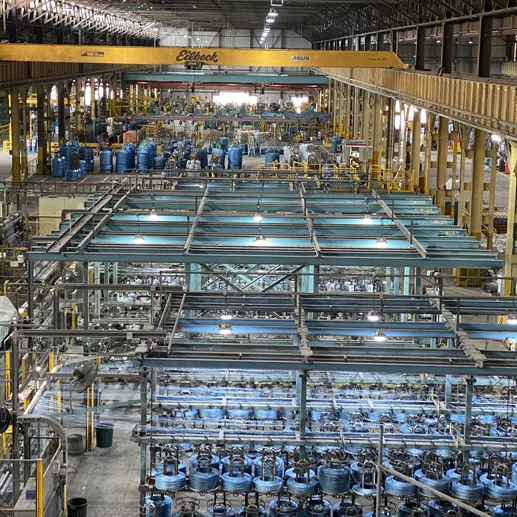

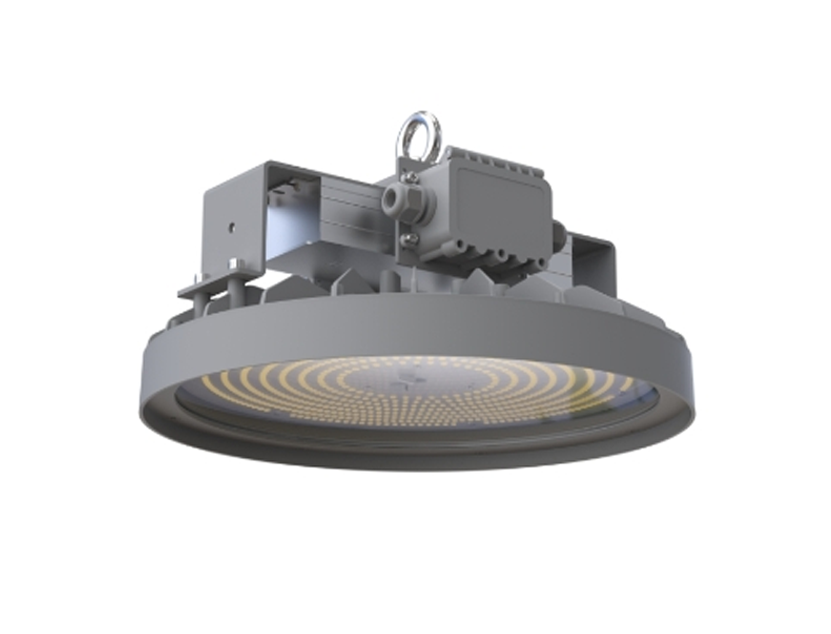

Class-leading performance – 12,000 lumens at 150 lumens per watt Versatile, go anywhere industrial lowbay/highbay
Designed for lower ceilings with 110 degrees beam spread White powder-coated skirt to minimise glare Food safe, polycarbonate lens Winner multiple international industrial design awards.
Wider lighting applications. Enables auto-dimming with light and motion sensors. Dims 1-10VDC, with commonly available dimmers.
Outstanding performance - 150 lumens per watt Dimmable driver – 1-10VDC True industrial-quality fitting Polycarbonate lens for food safe areas. No glass. Energy saving rebates available in NSW & SA. VIC pending.
Dimmable driver – 1-10VDC True industrial-quality fitting Polycarbonate lens for food safe areas. No glass. Energy saving rebates available in NSW & SA. VIC pending.
Daylight harvesting made easy.
Eliminates wastage when natural light is sufficient. Auto-dimming down to just 10%. Smooth, gradual dimming – no sudden on-off switching Controls individual highbays or small groups
Optional extra for Primo LED Highbays with dimmable drivers.
Eliminates wastage when area is unoccupied.
Microwave technology 3 stage dimming – bright mode > dim mode > off. Auto-dimming – individually or in small groups. Smooth gradual transition – no sudden on-off switching. Rated IP65.
Primo LED Lighting was conceived to fill the demand for true industrial quality performance LED lighting to satisfy the needs of mainstream and heavy industry.

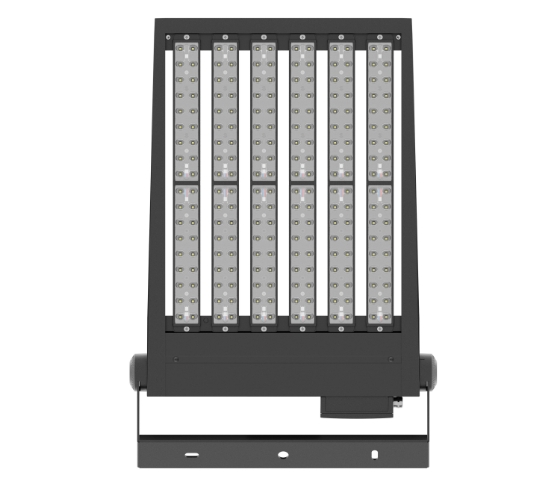

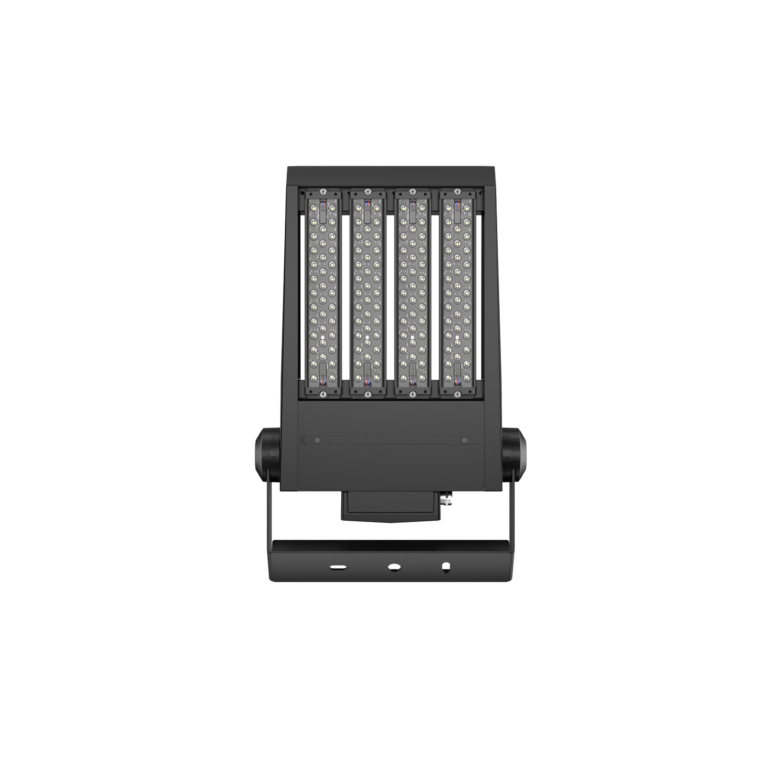

Latest modular design - powerful yet compact. 140 lumens per watt performance. Bracket and lens options for most applications.
Superior performance & reliability First class design and build quality Specified to suit almost any application
Unprecedented LED lumen output Modular design - powerful & compact Lens options to suit all applications
Superior 140 lumens/W performance First class design and build quality Specified to suit almost any application

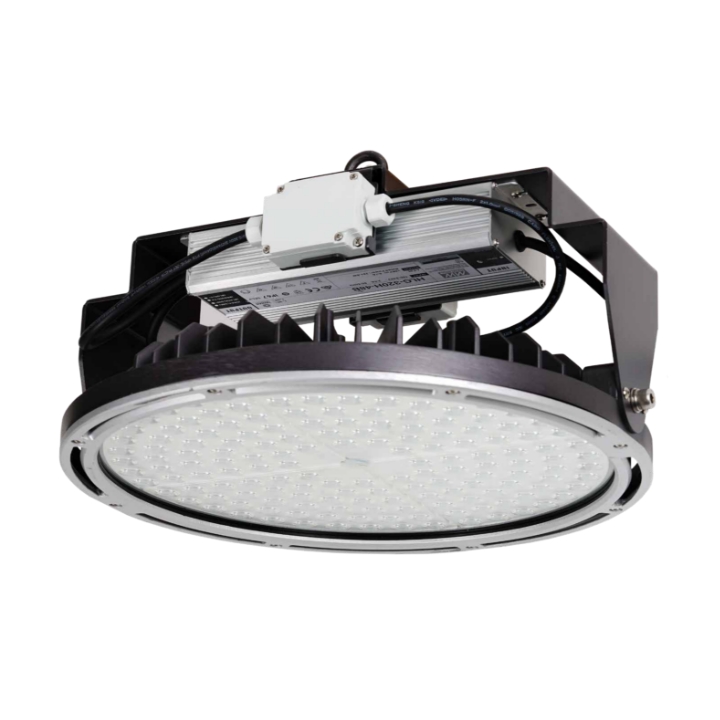

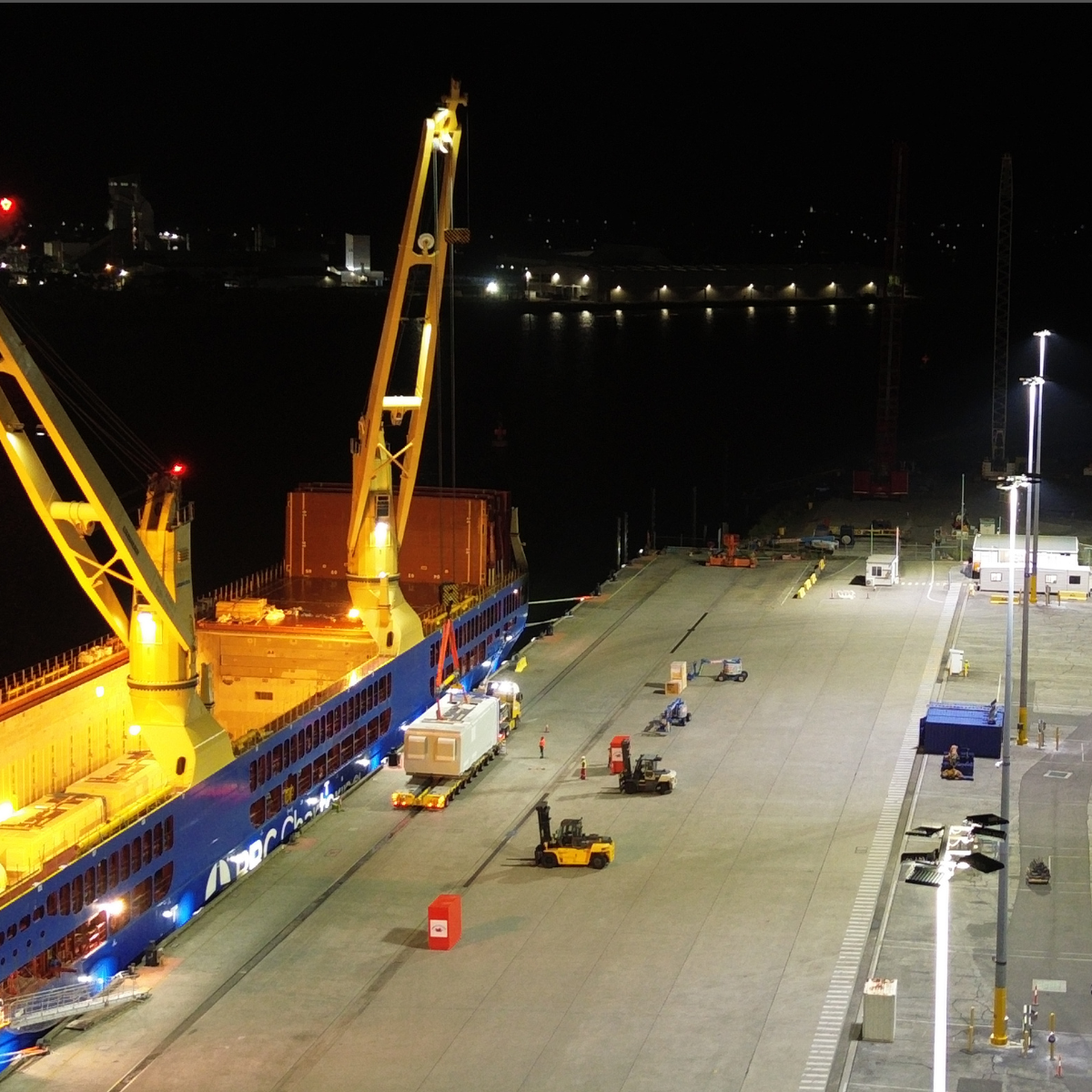

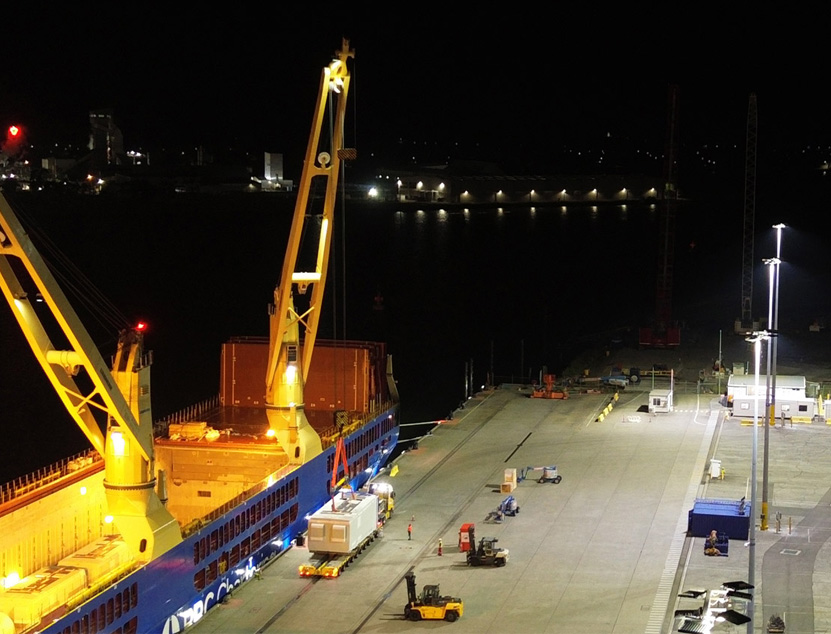

40,000 lumens output Genuine replacement for 1000W HID Exceptional build quality.
Class leading light output - 40,000 lumens at over 100 lumens/watt State-of-the-art LED technology Dependable long-life performance even in difficult operating conditions
150W - 300W fittings available on special order
Class-leading performance - 140 lm/W Highest quality components Built for ultra-dependable performance.
Class-leading light output Premium components for ultimate reliability Compact modular design Robust, glass-free construction

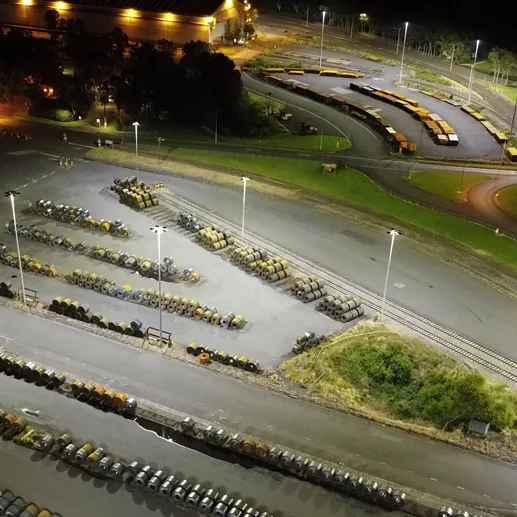

Fixed brackets for carparks. Hinged brackets for billboards. Several asymmetric lenses to suit all applications.
Latest modular design - powerful yet compact. 140 lumens per watt performance.
Superior performance & reliability First class design and build quality Rated IP67
LED security lighting around buildings.

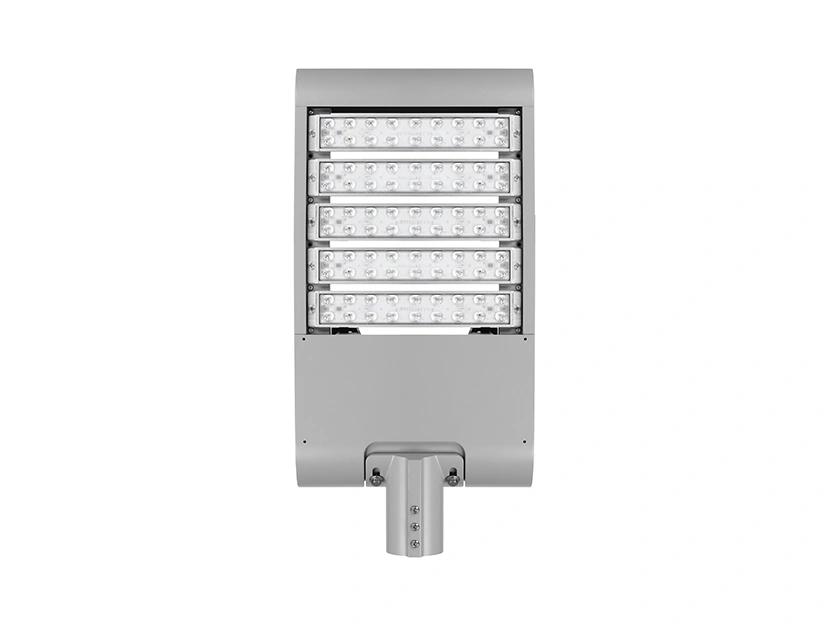

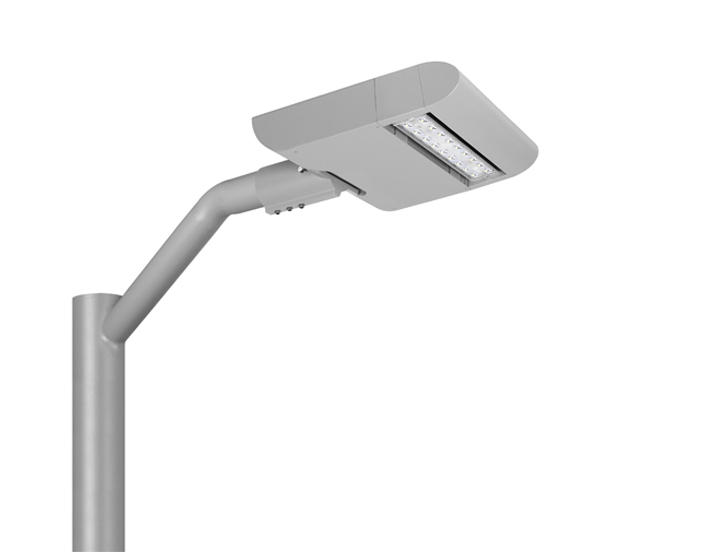

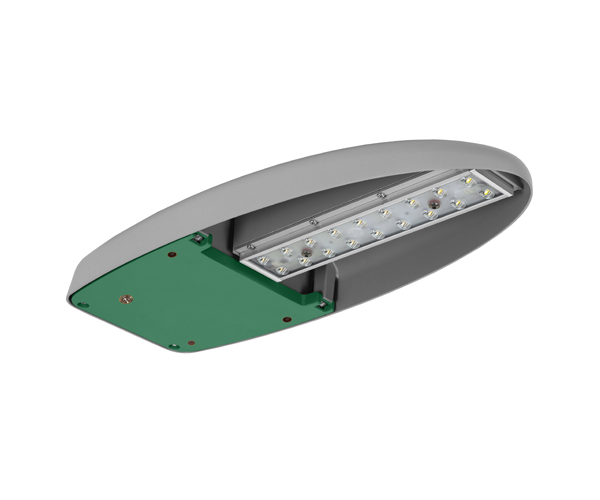

Polycarbonate T3M batwing lenses – ideal light distribution over roads and walkways.
Class-leading performance 140 lm/Watt
Built for ultra-dependable performance – no glass.
Designed for the toughest conditions. Quality-built for maximum performance and outstanding reliability.
4,250 lumens from 40W, at over 100 lumens per watt. 50,000+ hour service life.
Patented slim-line design Powerful 1600 lumens output PIR sensor model also available.
Low cost, top quality floodlight Integrated driver for sleek modern appearance Cool white, 4000K.

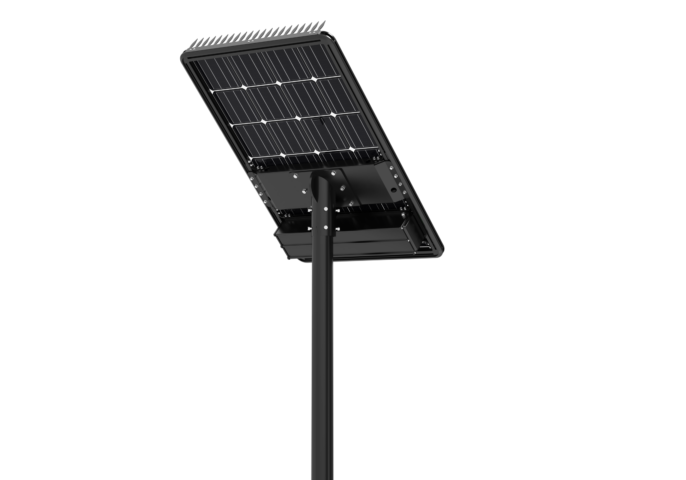

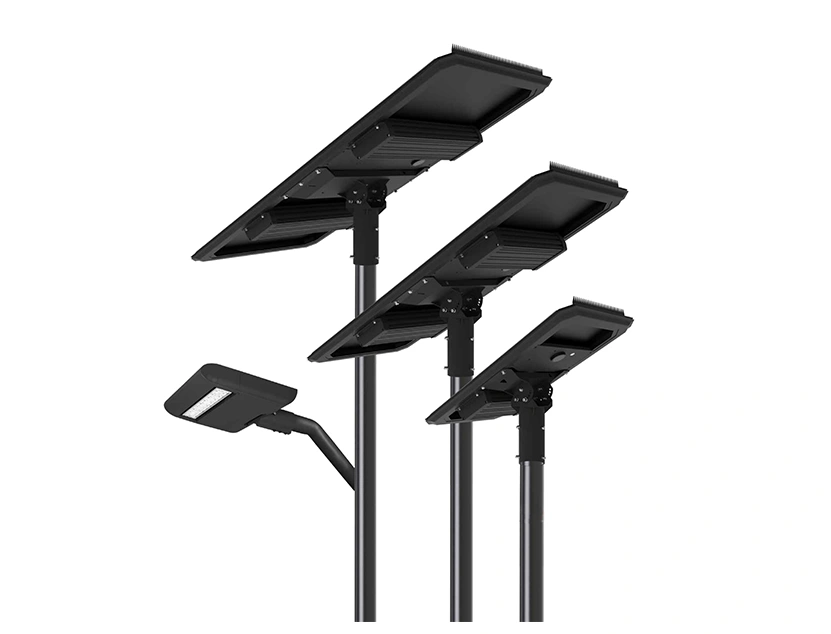

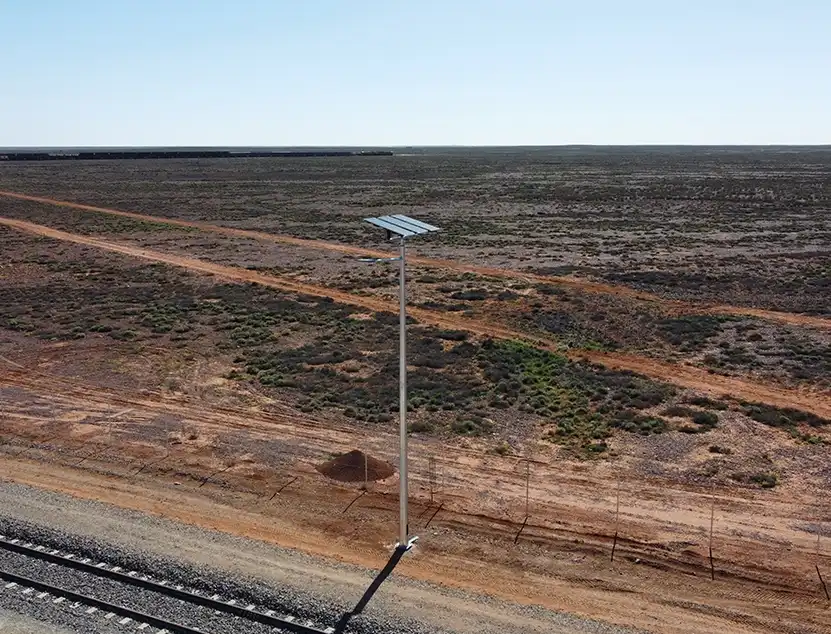

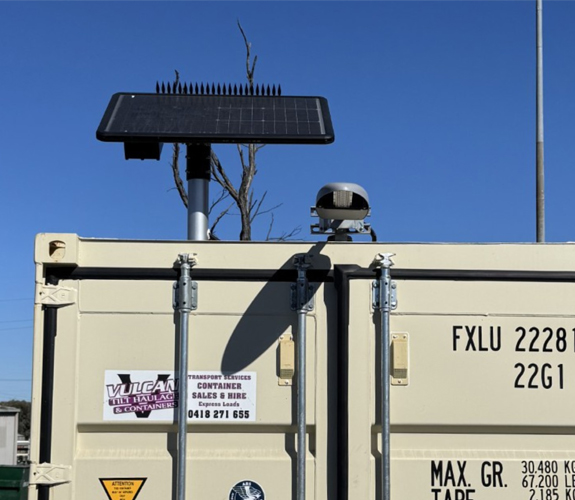

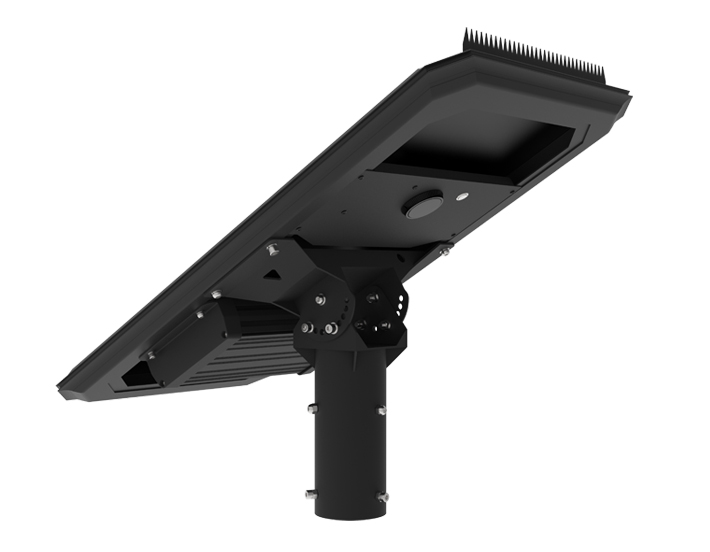

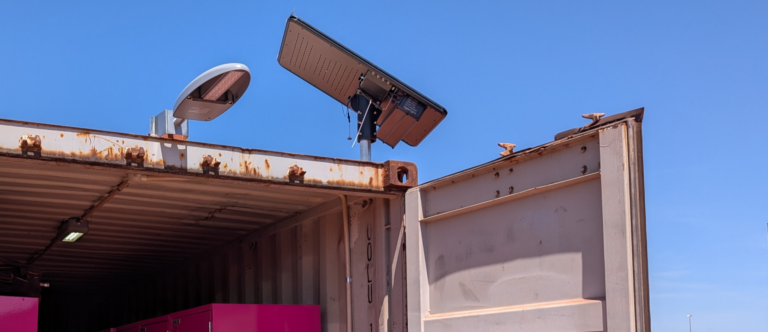

• More powerful solar panel – now 35W • More Lithium-ion battery capacity – now 192Wh • More light output – now 10W @ 130 lm/W • More programming options – via USB port
1. Lithium-ion batteries - Energy efficient with long 6 years service life. Replaceable.
2. USB port - allows pre-programming of light output via laptop to suit the application. Common pre-programming options include: • turning off a number of hours after sunset • running at full power for a number of hours before turning off or running in dim mode • running all night in dim mode
3. Controller module - manages charge into and out of Lithium-ion batteries
1. Infrared motion sensor. The output rises to full brightness before dropping to dim mode again. This is to conserve battery power to maximise operating hours.
2. LED light. High-output Cree LED chips producing 130 lumens per watt. The chips are protected by a solid polycarbonate lens.
3. Lithium-ion battery pack with control module to manage the charging and light output system.
4. Solar panel 35W - high efficiency monocrystalline module with 3.2mm tempered glass lamination for excellent durability and load resistance.
5. Bracket & stainless steel security bolts for easy installation. Simply bolt the fitting onto the top of a pole of 75-90mm diameter. The robust fitting is built to withstand wind gusts up to 130mph.
The built-in motion sensor automatically regulates light output from full bright to dim mode (25%) to increase battery autonomy, and therefore, to extend operating time.
Operating times without a charge depend on hours of sunlight and the number of sensor activations which affects the number of hours the fitting runs in full bright mode.
For example, One full charge provides:
Normal program: 43 hours based on 2 hours bright and 12 hours dim mode per night (ave = 4W).
100% bright mode: 17 hours (output 10W). 100% dim mode: 57hours in dim mode (output 3W).
Typically, 3 hours exposure to sunlight inputs 92W into the battery.
Daily output over 14 hours may typically be 2hrs in bright mode @ 10W per hour, plus 12hrs in dim mode @ 3W per hour.
The average output over 14 hours is therefore 4W per hour, or 56W.
The surplus of 36W is stored in the battery to serve as a buffer for the future.
High output Cree LED Chips produce 130 lumens per Watt 10W light produces 1200 lumens in bright mode. 380 lumens in dim mode 15W option also available for northern Australian locations (1800 lumens maximum output)
Glass-free polycarbonate lenses and lens cover Solid aluminium housing/heat sink
The batwing light distribution is ideal for the majority of applications.
