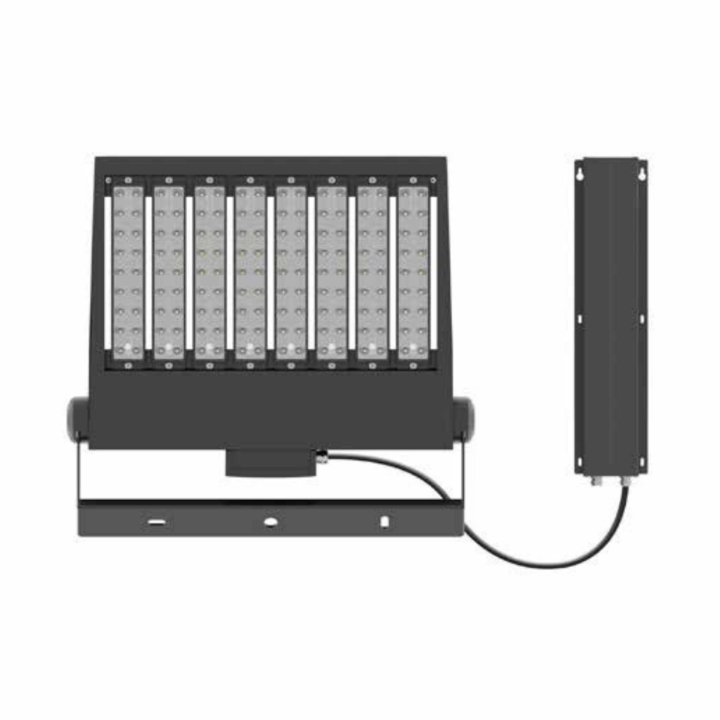

Megaflood Remote Driver 480W
Lumen Output 63000

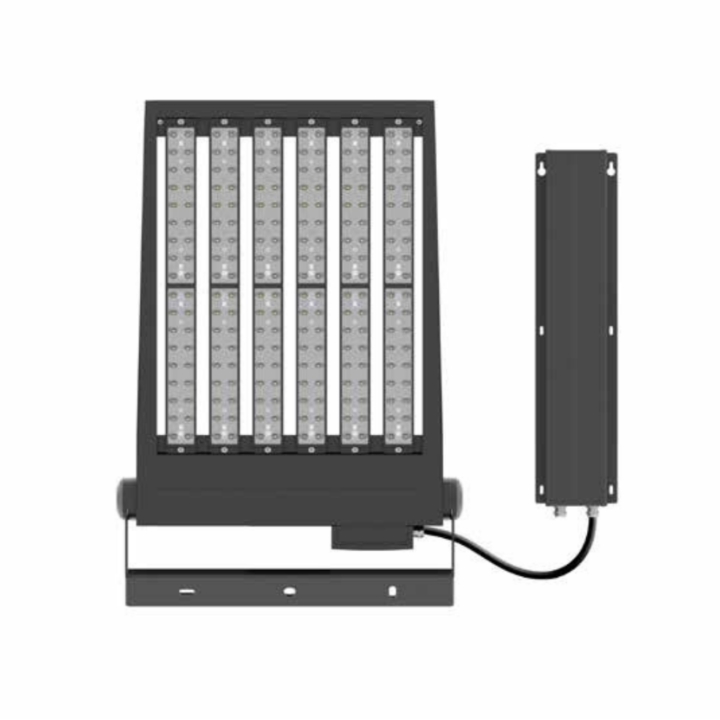

Megaflood Remote Driver 720W
Lumen Output 92000

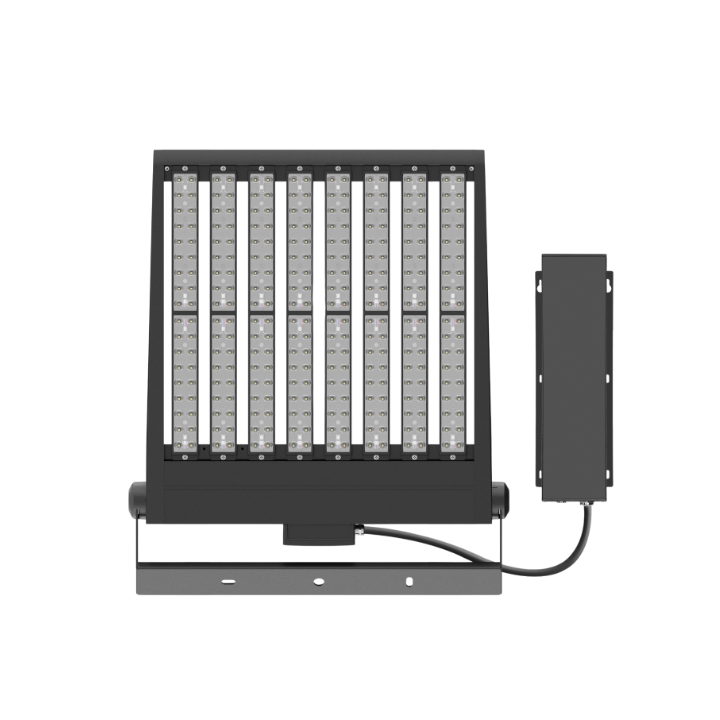

Megaflood Remote Driver 960W
Lumen Output 126000

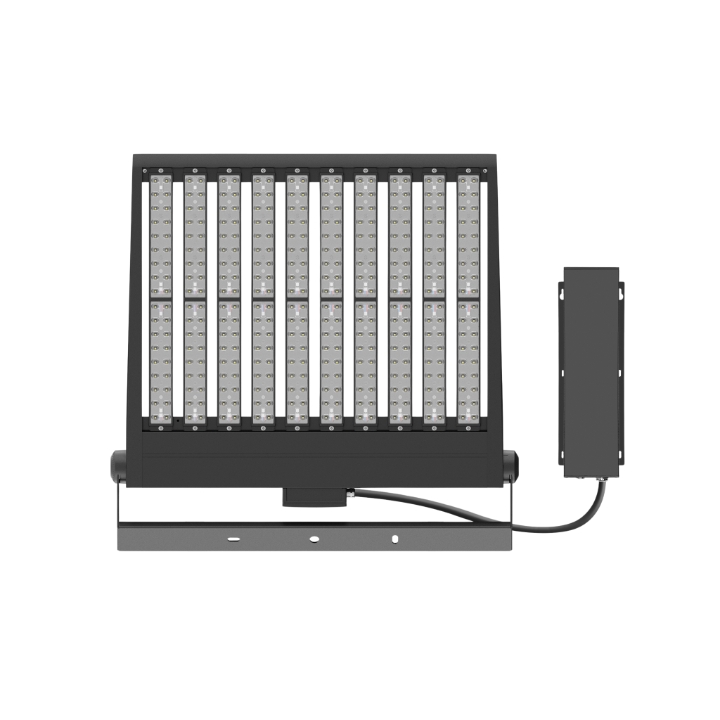

Megaflood Remote Driver 1200W
Lumen Output 175000
MegaFlood Remote Driver 480-1200 W
The MegaFlood Remote Driver 480–1200 range is built for high mast lighting where power, control and service access must work without compromise. Operating in the ultra-high-output 480 to 1200-watt class, this system delivers massive lumen performance for mine sites, ports, rail yards, ship loaders and large logistics facilities where fewer fittings must do more work.
Its standout advantage is the remote driver architecture, which removes heat and weight from the luminaire head, dramatically improving thermal stability, extending component life, and enabling safe, ground-level servicing in high-mast installations. Combined with precision-engineered optics, premium control gear and a heavy-duty die-cast aluminium body, MegaFlood Remote Driver delivers uncompromising brightness, efficiency and long-term reliability in the harshest industrial environments.
Customisable options
Wattage & LED drive current will determine total lumen output and efficacy
Low Voltage 100 – 277VAC, High Voltage 277 – 480VAC
Choose from 18 different photometric lensing options including asymmetric & symmetric
Colour Rendering Options >70, >80, >90
Select your preferred CCT to suit application from 2200k – 5000k and coloured LED such as Green and Amber (Turtle Friendly)
Choose from U-Bracket (trunnion style). Rotatable L-Spigot, Fixed T Spigot & Surface Mount J- Bracket
Choose from a range of standard RAL colours including Black Grey, White, or custom colours available.
Key Features
- Ultra-High Power Output: 480 W to 1200 W delivering up to 175,000 lumens for large-area and high-mast applications.
- Remote Driver Architecture: Improves thermal management, reduces structural load on the pole or structure, and allows safe, ground-level maintenance.
- Only 3 core cable required between light head and driver for each 240V and 415V solutions
- High System Efficiency: 120 to 165 lm/W efficacy, ensuring maximum light output with reduced energy consumption.
- Advanced Optical Control: Nineteen precision-engineered lens types, including asymmetric and back-light control options for AS 4282 compliance.
- Extreme Environmental Protection: IP66 and IK10 ratings for full resistance to water, dust and impact in harsh outdoor conditions.
- Wide Thermal Operating Range: Reliable operation from –40°C to +50°C, ensuring performance in extreme climates.
Modular Design For Supreme Versatility
The MegaFlood range by Tigerlight is one of the most versatile lighting platforms on the market. Built on a fully modular design, it offers an almost limitless range of tailor-made configurations to suit virtually any application, anywhere. From hardstands, ports, sporting precincts, mining, rail and car parks to demanding indoor environments, Mega Flood delivers scalable, high-performance illumination engineered for total flexibility and long-term reliability.
