Megaflood 40W
Lumen Output 6200
Megaflood 80W
Lumen Output 11050
Megaflood 120W
Lumen Output 16600

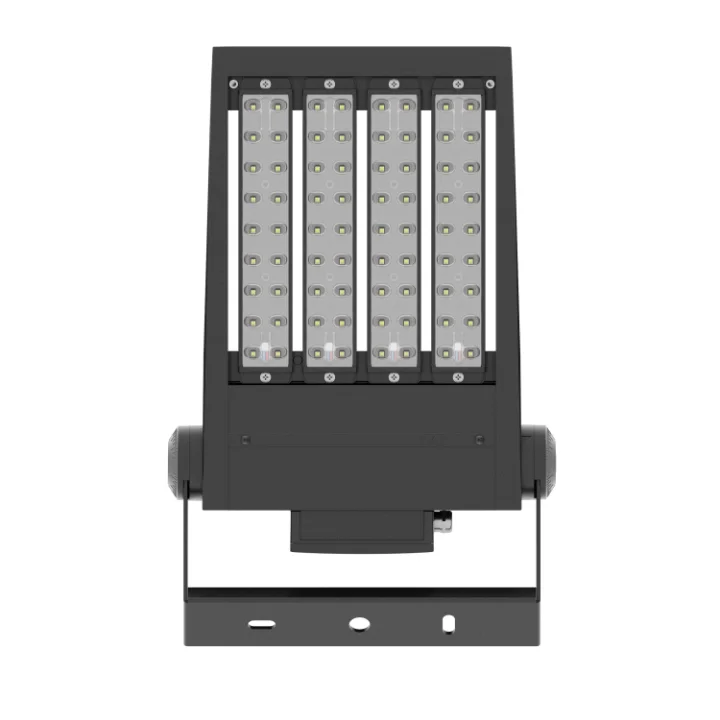

Megaflood 160W
Lumen Output 22145

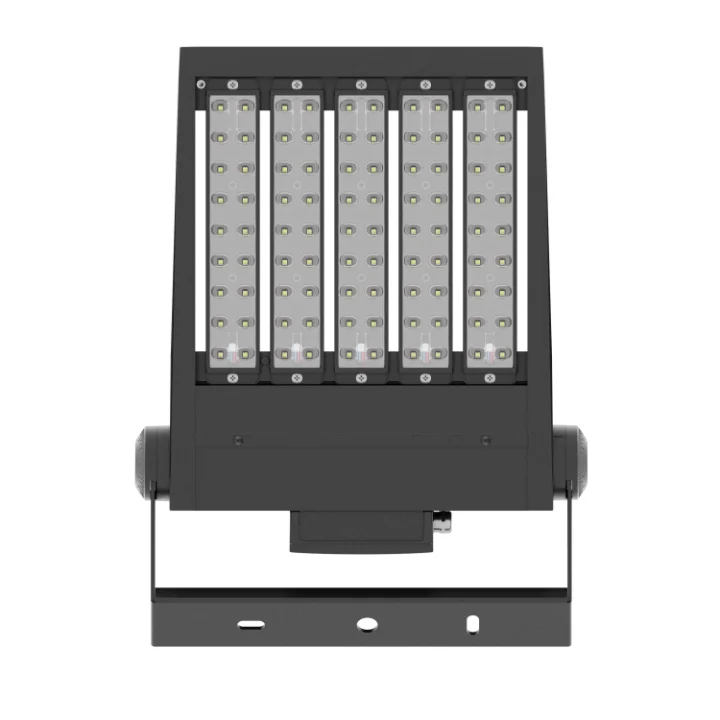

Megaflood 200W
Lumen Output 27500

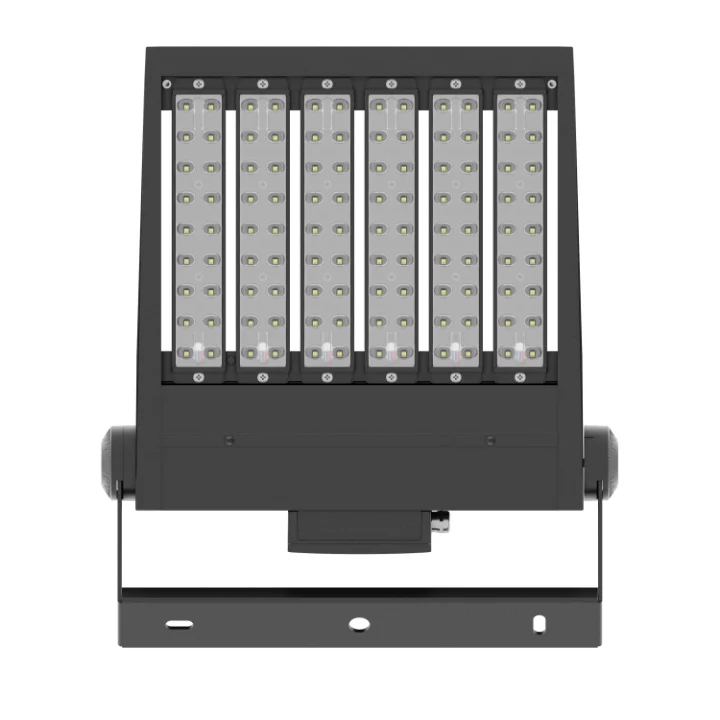

Megaflood 240W
Lumen Output 32845
MegaFlood 40-320W
The MegaFlood 40–320 W range delivers unrivalled flexibility to low to mid mounting height-industrial and commercial environments requiring proven, controlled, energy-efficient illumination. Each luminaire combines a high-efficiency Nichia LED chipset, Inventronics driver technology, and a thermally balanced die – cast aluminum housing rated IP66 and IK10. Designed for use in limitless applications including manufacturing facilities, car parks, workshops, wash bays the range provides stable lumen performance, low maintenance, and long service life, with flexible configuration options across, optics, mounting, CCT, CRI, powder coating colours and control protocols.
customizable options
Wattage & LED drive current will determine total lumen output and efficacy
Low Voltage 100 – 277VAC, High Voltage 277 – 480VAC, Extra Low Voltage 24V options available
Choose from 18 different photometric lensing options including asymmetric & symmetric
Colour Rendering Options >70, >80, >90
Select your preferred CCT to suit application from 2200k – 5000k and coloured LED such as Green and Amber (Turtle Friendly).
Choose from U-Bracket (trunnion style). Rotatable L-Spigot, Fixed T Spigot & Surface Mount J- Bracket
Choose from a range of standard RAL colours including Black Grey, White, or custom colours available.
Key Features
- High-efficiency Nichia LED chipset achieving up to 165 lm/W for maximum energy efficiency
- Operating temperature: –40 °C to +50 °C for consistent performance across diverse climates
- IK10 impact and IP66 ingress protection, ensuring reliability in dusty, moist, or harsh industrial environments
- 1-10 V, 0-10 V, or DALI dimming, enabling integration with advanced lighting control systems
- Inventronics driver technology with built-in or remote configuration for simplified maintenance and wide input voltage
- Certified SAA and CE, backed by a 5-year manufacturer’s warranty
- Power factor > 0.95 and 20 kA surge protection safeguarding performance in demanding electrical conditions
Modular Design For Supreme Versatility
The MegaFlood range by Tigerlight is one of the most versatile lighting platforms on the market. Built on a fully modular design, it offers an almost limitless range of tailor-made configurations to suit virtually any application, anywhere. From hardstands, ports, sporting precincts, mining, rail and car parks to demanding indoor environments, MegaFlood delivers scalable, high-performance illumination engineered for total flexibility and long-term reliability.

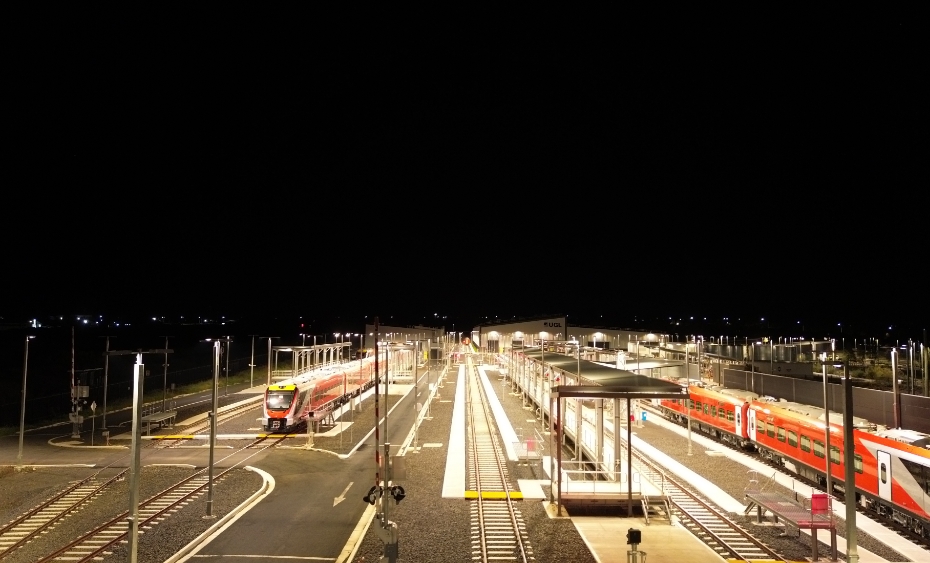

Future-Proof LED Lighting for 24/7 Rail Maintenance Operations
Momentum Trains’ Mindyarra Train Maintenance Centre required a future-proof lighting solution for a 24/7, solar-powered 25-hectare facility, where Tigerlight delivered a site-wide installation of over 840 luminaires using the MegaFlood modular lighting platform. Configured from 20 W to 200 W with T4M and T4S precision optics, the system achieves 80 lux maintenance targets, integrates DALI control and remote drivers, and provides 3000 K, CRI 80 illumination for clear, safe operations. The design ensures low glare, zero upward light spill and full obtrusive light compliance, including dark-sky protection near the Coonabarabran Observatory, delivering a robust, energy-efficient and scalable rail maintenance lighting solution.
