Corso 175 Pro Package
The Corso 175 Pro Solar Area Light Package is a high-output, off-grid solar lighting solution engineered for streets, car parks, large pathways and open public spaces where maximum light output and extended autonomy are required.

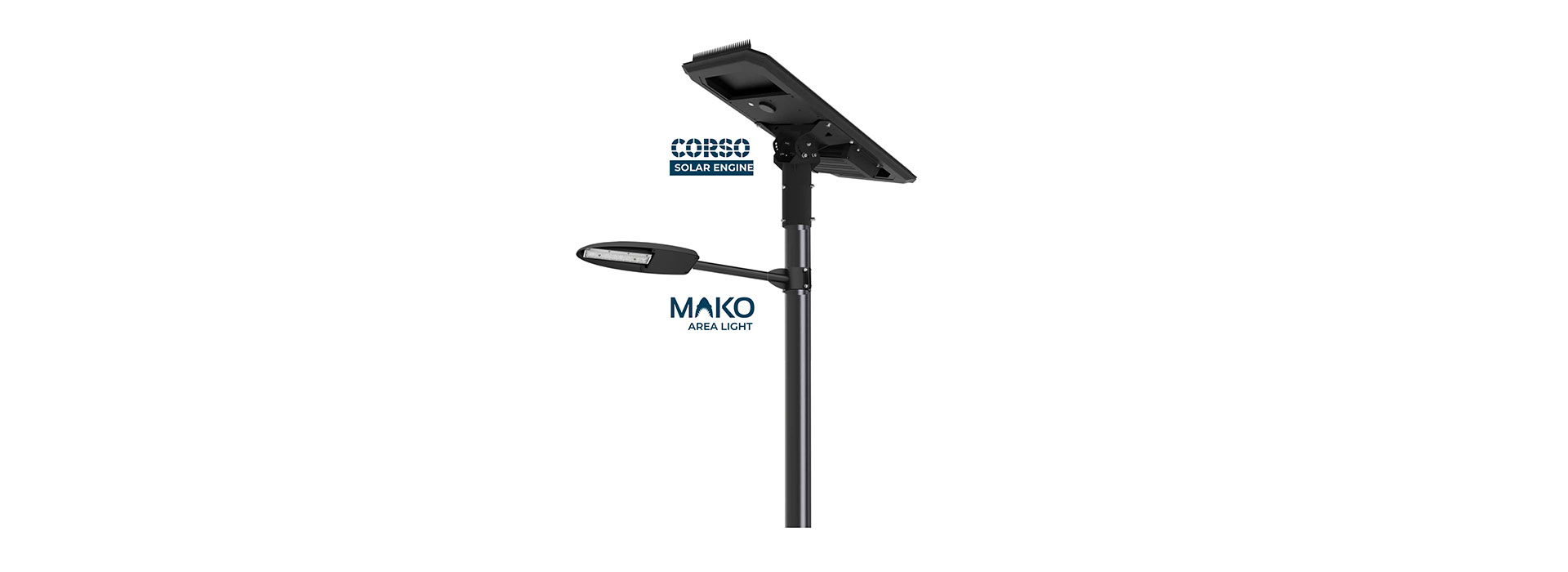

This complete package integrates the Corso 175 Solar Engine, MAKO 12 V LED Area Light Head, and Corso Outreach Arm & Pole Bracket (SSML-BKT) into a single, specification-ready solar streetlight system. Intelligent sensor-based control optimises energy use while delivering reliable dusk-to-dawn illumination across demanding applications.
Purpose-built for Australian conditions, the Corso 175 Pro Package simplifies solar lighting specification by combining high-efficiency solar generation, long-life LiFePO₄ battery storage and a robust, vandal-resistant LED luminaire.
Customisable options
- Solar panel: 175 W
- Battery capacity: 1690 Wh
- Battery type: LiFePO₄
- Battery voltage: 12.8 V
- Battery lifespan: >2,000 cycles
- Operating temperature: −10 °C to +70 °C
- Panel type: Monocrystalline, A-grade
- Panel efficiency: up to 25.5%
- Controller: MPPT smart controller
- Protection: Integrated Battery Management System
- IP / IK rating: IP65 / IK08
- Dimensions: 1556 × 723 × 398 mm
- Weight: 41.9 kg
- Warranty: 5 years (battery 3 years)
- LED chips: Nichia 3535
- Luminous flux: 4,500 – 9,000 lm
- Colour temperature: 4000k standard, other CCTs available
- CRI: Ra >70
- Light distribution: T2M or T4M
- IP / IK rating: IP66 / IK10
- Operating temperature: −40 °C to +50 °C
- Service life: >50,000 hours
- Housing: Aluminium
- Optics: Polycarbonate lenses (no glass)
- Spigot entry: 35 mm diameter, 75 mm depth
- Dimensions: 495 L × 200 W × 79 H mm
- Weight: 3.6 kg
- Warranty: 5 years
SSML-BKT
- Support arm / spigot diameter: 34 mm (suits MAKO LED Area Light Head)
- Pole mounting clamp: Ø95 mm internal diameter
- Suitable for pole diameters: 76–90 mm
- Supplied with stainless steel fixings
- Designed for secure, long-term outdoor installation
Vertical pole not included.
Key Features
Complete Solar Lighting System
- Corso 175 Solar Engine (175 W panel, 1690 Wh battery)
- MAKO 12 V LED Area Light Head
- Corso Outreach Arm & Pole Bracket (SSML-BKT) included
- Plug-and-play electrical connection
- Vertical pole not included
Reliable Dusk-to-Dawn Operation
- High-efficiency 175 W monocrystalline A-grade solar panel
- 1690 Wh LiFePO₄ battery with integrated Battery Management System
- MPPT smart controller for efficient solar energy harvesting
- Designed to deliver up to 3 days autonomy, depending on programming and site conditions
- Automatic dusk-to-dawn operation
Intelligent Motion Sensor Control
- Integrated microwave motion sensor
- 360° detection coverage
- Sensor range suitable for up to 8 m mounting height and 10 m diameter detection area
- Typical factory programming:
- 30% output dusk-to-dawn
- 100% output on motion detection
MAKO LED Area Light Performance
- LED output matched to solar engine capacity to balance illumination and battery autonomy
- Luminous flux: 4,500 – 9,000 lumens (application dependent)
- Nichia 3535 LED chips for high reliability and long-term performance
- T2M light distribution optimised for area and pathway lighting
- IP66 / IK10 rated luminaire for harsh outdoor environments
- Aluminium housing with polycarbonate optics (no glass)
Robust Mechanical Construction
- Anodised aluminium alloy solar engine housing
- Stainless steel brackets and fixings
- Tiltable solar panel with 0°, 15°, 30° and 45° settings
- Bird spikes included as standard
