Corso Solar Engine

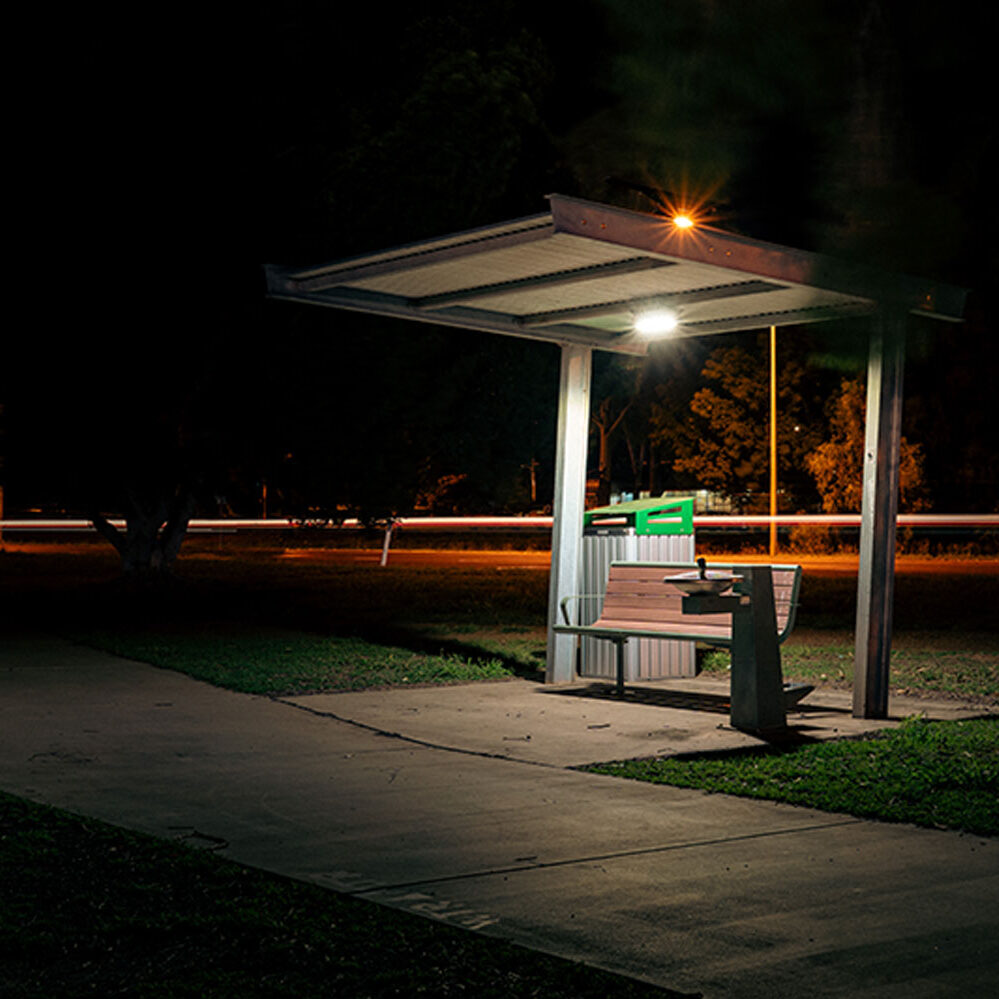

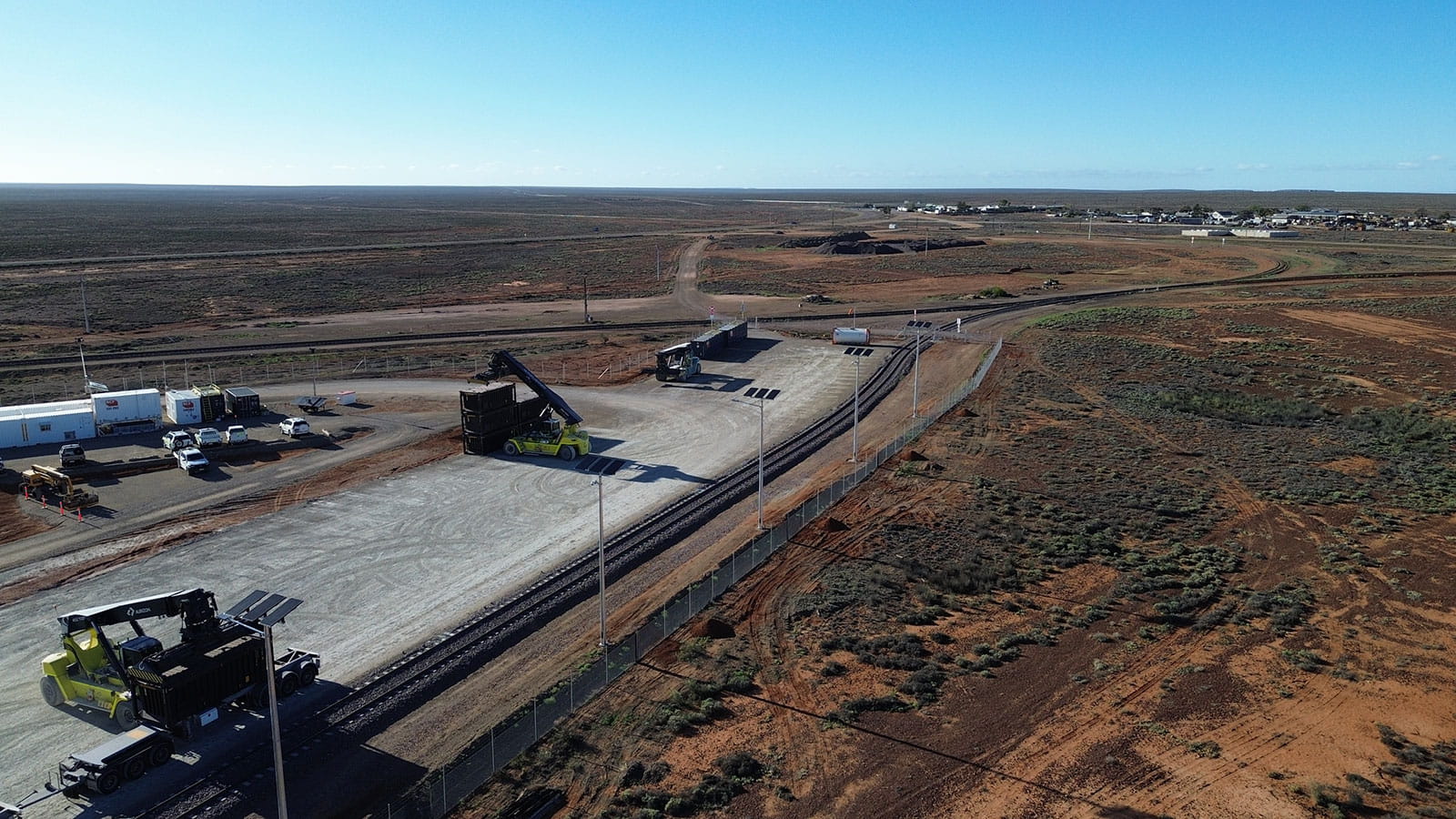

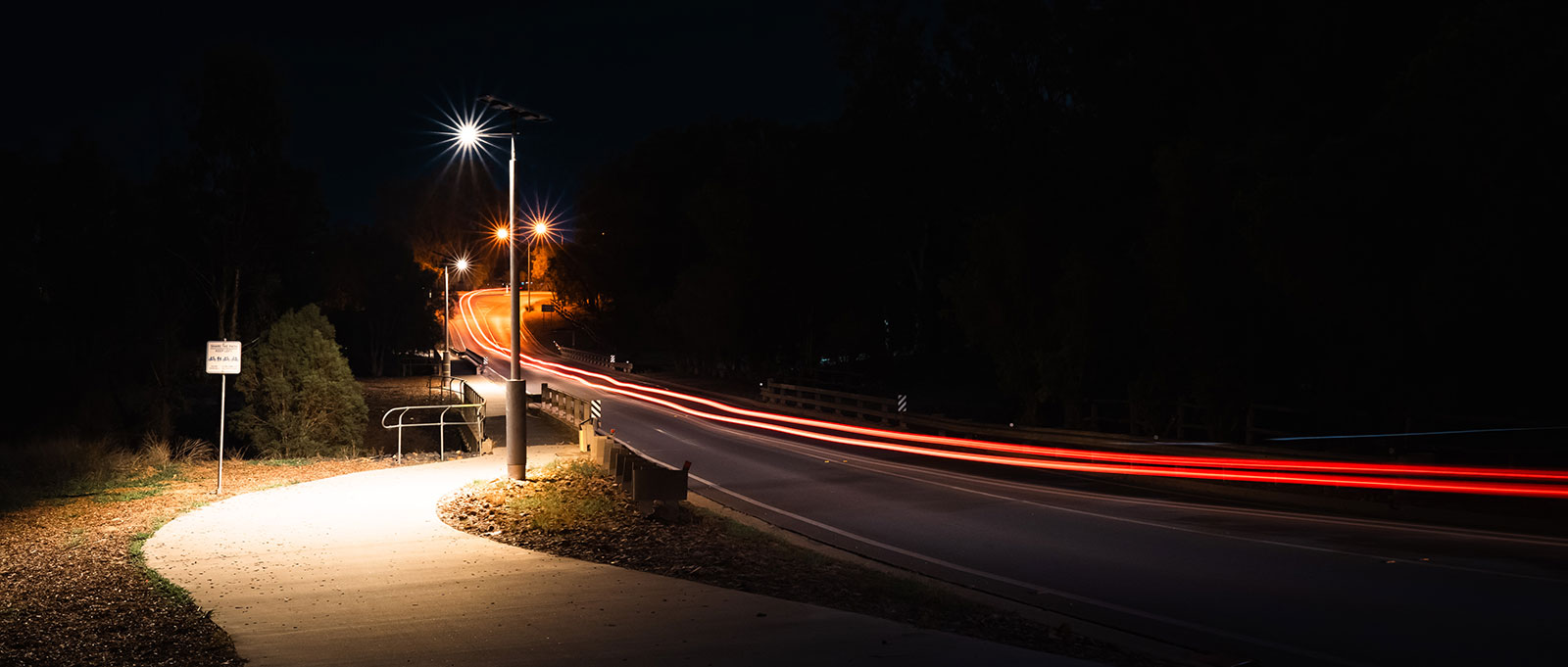

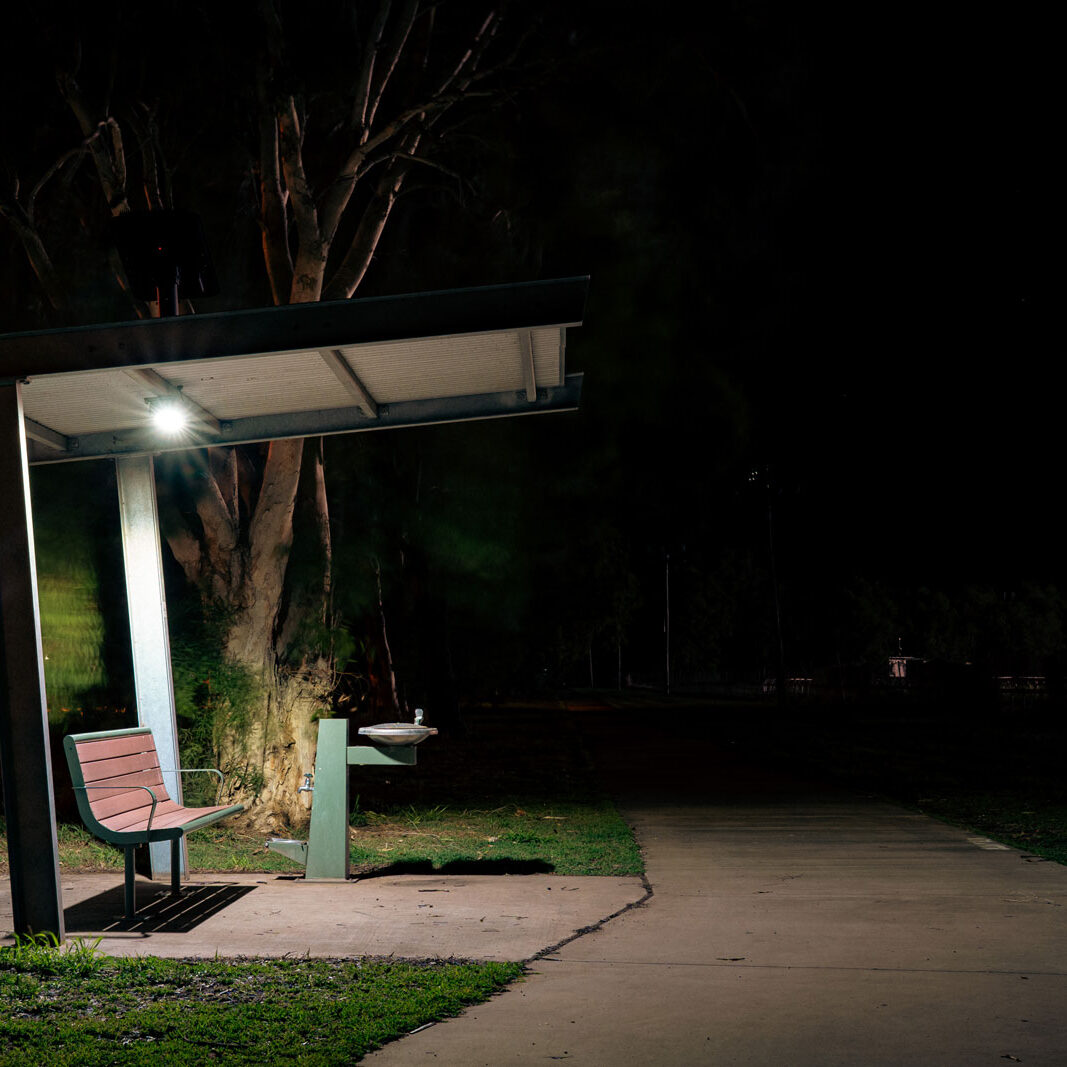

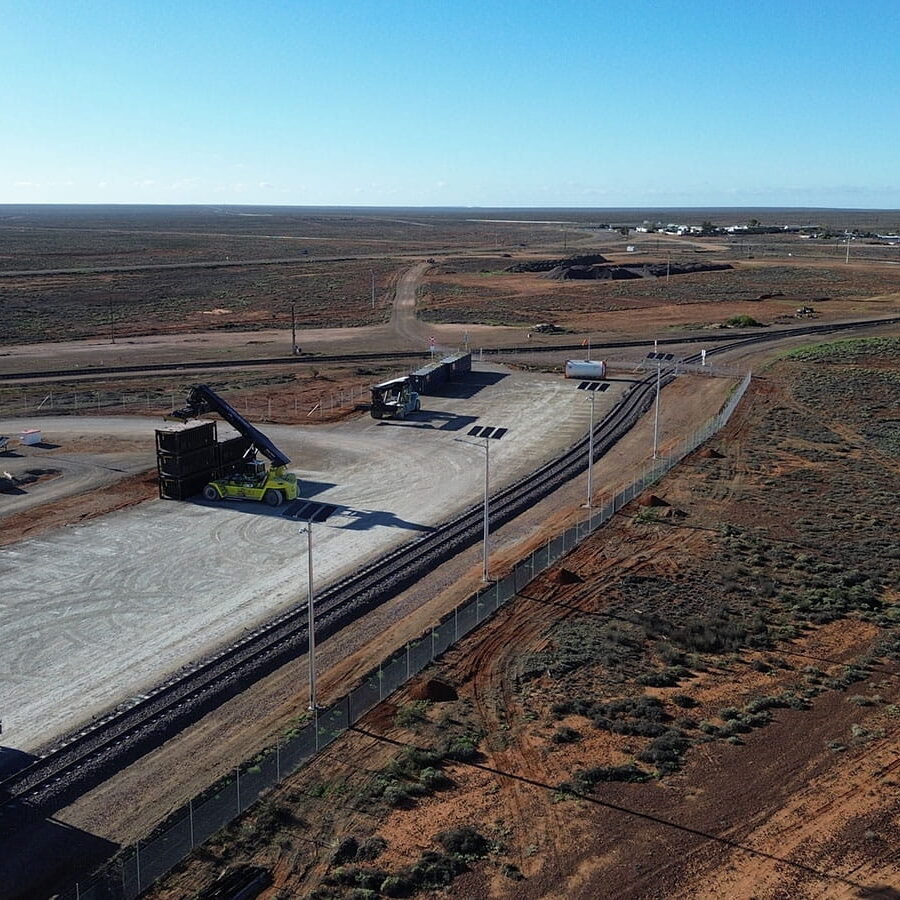

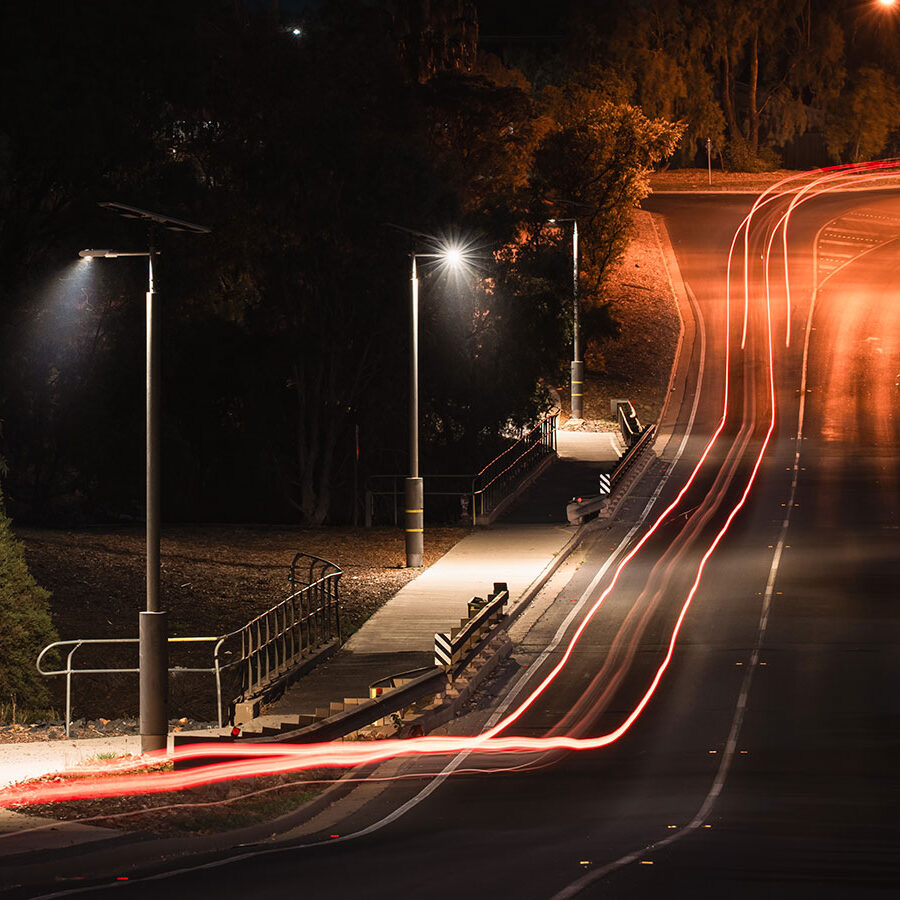

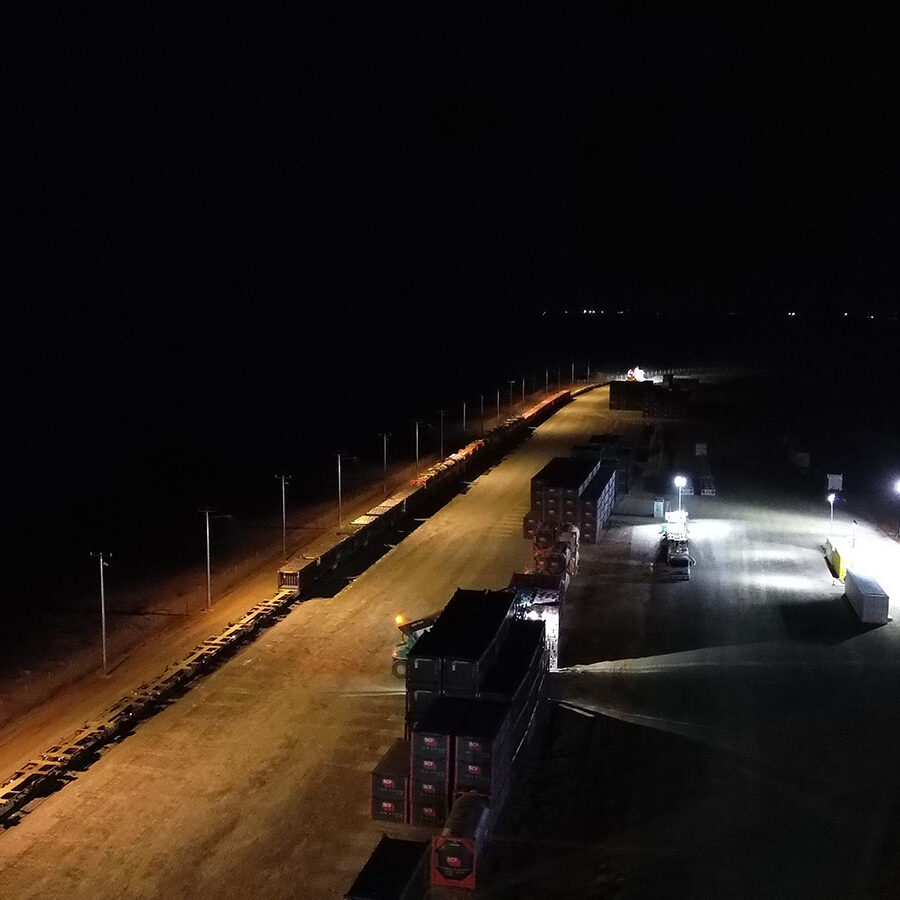

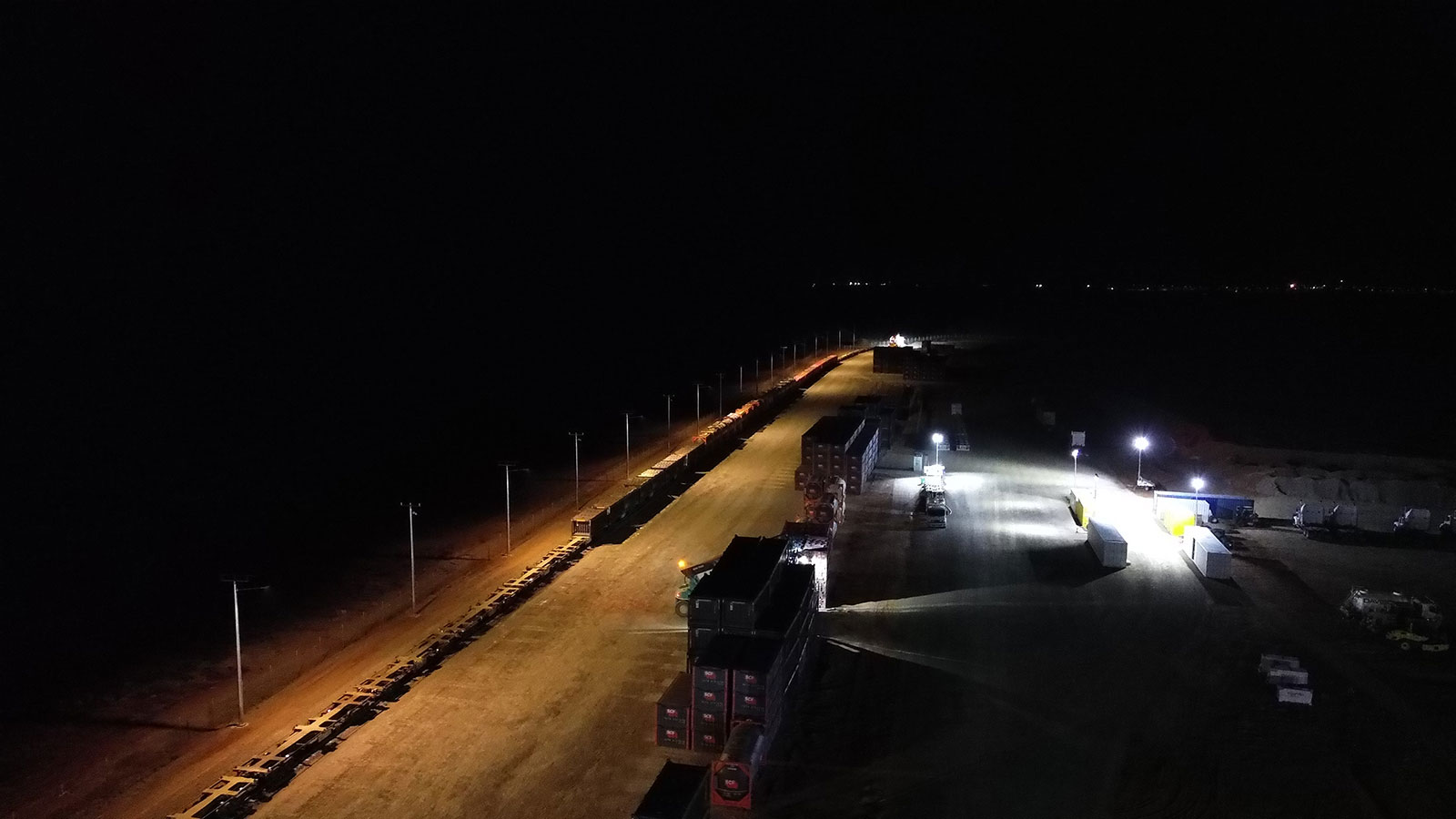

The Corso Solar Engine is a fully integrated off grid power system engineered to deliver reliable, continuous energy to Tigerlight industrial luminaires in remote or infrastructure-limited environments. Its core strength is a complete, self-contained solar power assembly that captures, stores, and delivers clean energy without the need for trenching, electrical circuits or site power upgrades. This makes the Corso Solar Engine an ideal solution for mining roads, compounds, pathways, perimeter lighting and public space projects where dependable solar autonomy is essential.

Each Corso unit combines a high-efficiency monocrystalline solar panel, a long life LiFePO₄ battery with an intelligent battery management system and a programmable MPPT smart controller in a durable and low maintenance pole top assembly. Engineered for long term energy stability, the Corso Solar Engine maximises energy capture through smart charging, protects battery health and ensures consistent operation in harsh Australian conditions. The result is a robust and cost-efficient solar power system that enables reliable off-grid lighting across industrial, mining and municipal applications.

Request IES Files

Customisable options

Available in three configurations to match solar exposure and load requirements:

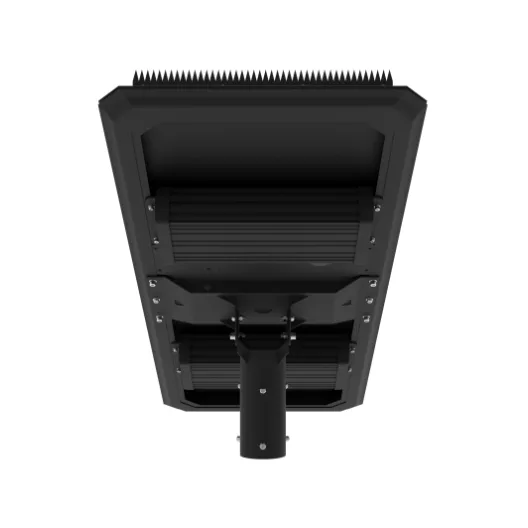

Corso 55 W – 380 Wh battery capacity
Corso 110 W – 1100 Wh battery capacity

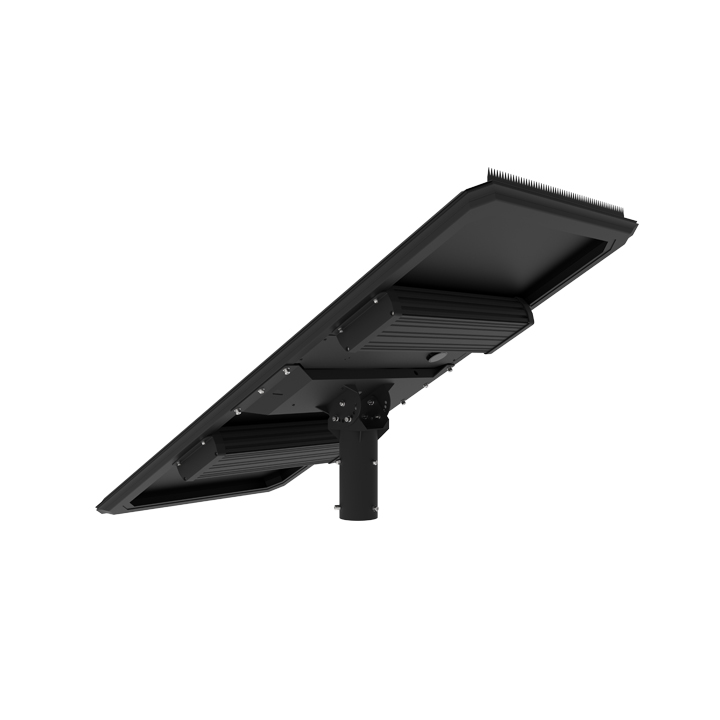

Corso 175 W – 1690 Wh battery capacity

Standard stainless-steel adjustable bracket – Ø95 mm internal diameter. (Ø84 mm internal diameter bracket available as special order)

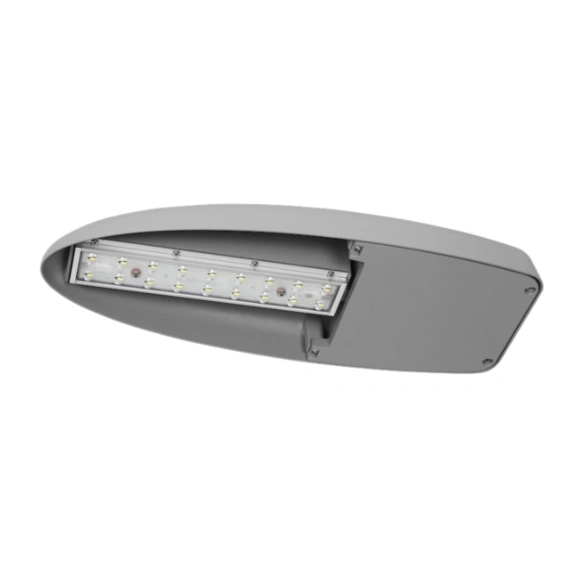

Optional outreach support arm for Mako series luminaires (34 mm spigot, 76–90 mm pole compatibility)

Fully programmable via MPPT controller for site-specific run times and dimming schedules

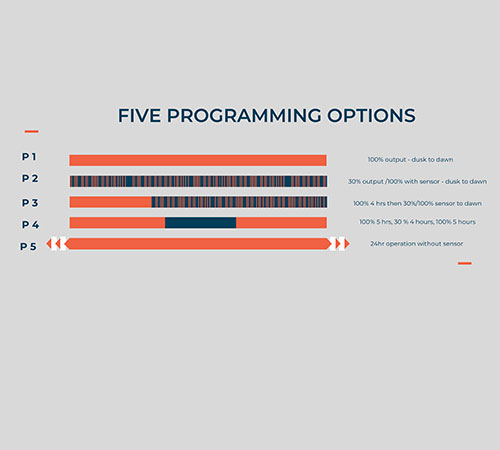

Five standard operational profiles available on request
Motion activation using microwave sensor with 360° range (10 m diameter at 8 m height)
24-hour power availability for lighting and daytime auxiliary loads

Anodised Aluminium Alloy Body: Stainless steel fixings for corrosion resistance in coastal and industrial environments.

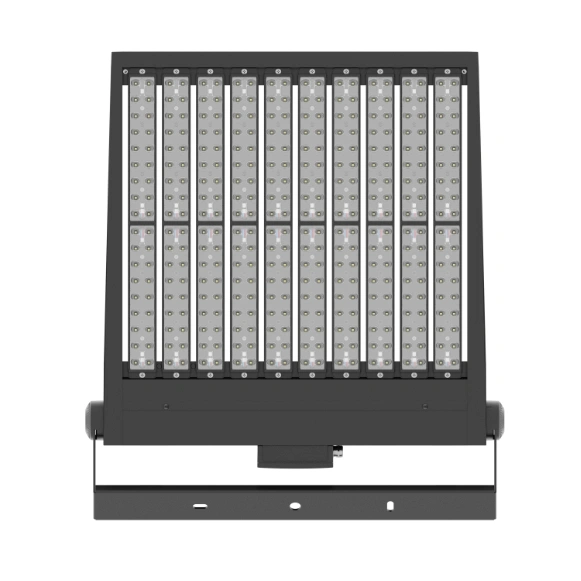

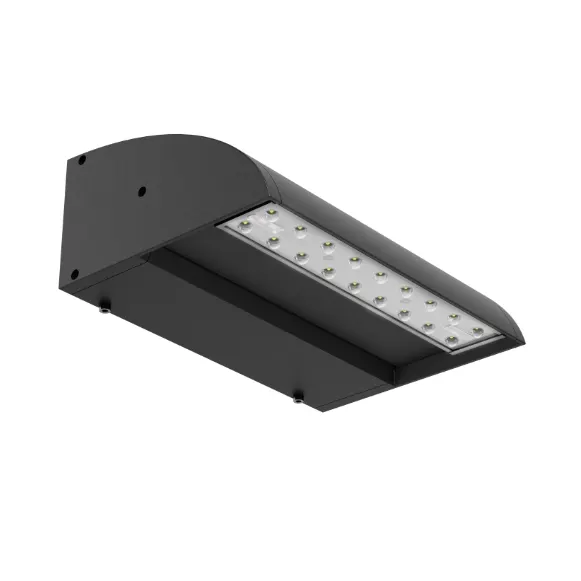

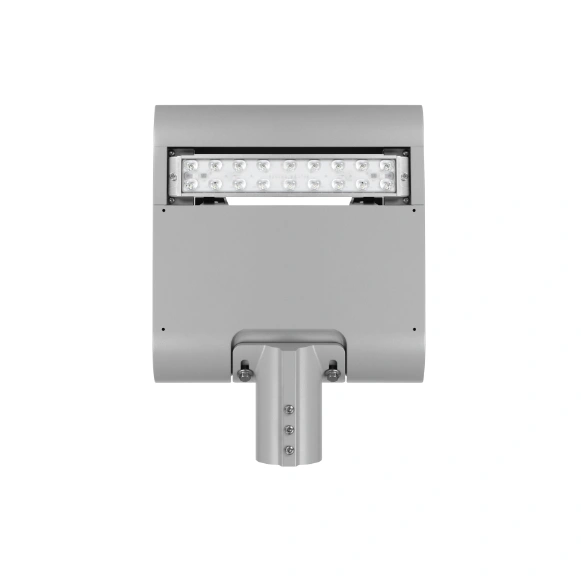

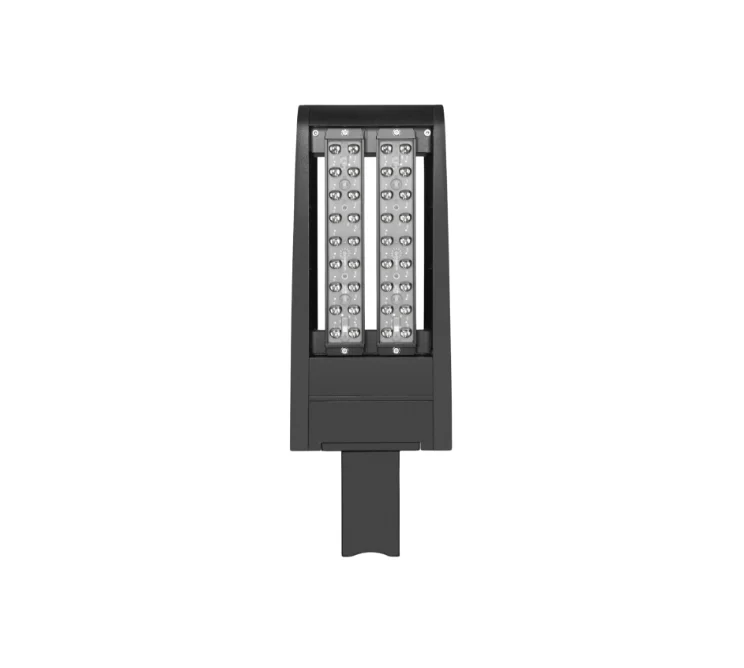

Engineered To Power A Range Of Tigerlight Luminaires

Corso Solar Engines are fully compatible with a wide array of Tigerlight’s modular outdoor area lighting platforms, enabling complete configuration to suit site-specific requirements. All mounting options, optical distributions and colour temperatures are available to deliver precise, application-driven performance.

To maximise off-grid efficiency, luminaire output is adjustable from 10 W to 60 W, allowing each system to be optimised for local solar conditions, installation environments, and operating profiles. Multiple Corso solar engines can be linked in parallel to reach even higher outputs.

Key Features

Fully Integrated Off-Grid Solar Power System
A complete, self-contained solar engine that combines the panel, controller and battery in one assembly, enabling fast installation, lower labour costs and reliable off-grid performance.
High-Efficiency Monocrystalline Solar Panel
A-grade monocrystalline panel with a conversion efficiency of up to 25.5 percent, maximising daily energy capture and supporting strong lighting autonomy across all Australian regions.
Long-Life LiFePO₄ Battery with Advanced BMS
LiFePO₄ battery rated for more than 2,000 cycles, supported by an intelligent Battery Management System that ensures safe charging, stable output and long-term reliability.
MPPT Smart Controller with Motion Activation
Programmable MPPT controller with an integrated microwave motion sensor that can enable adaptive dimming, energy optimisation and security activation based on site movement.
Durable Construction for Harsh Outdoor Environments
Anodised aluminium frame and battery housing, rated IP65 and IK08, designed for dust, moisture and impact resistance, with an operating temperature range from –10 °C to +70 °C for reliable year-round performance.

One Solar Engine. Unlimited Lighting Control.

Corso Solar Engines can power single or multiple luminaires from a single solar power source and are individually programmed to suit each specific application. Output profiles are precisely configured to balance light performance, battery autonomy and long-term system reliability.

Optional microwave motion sensing maximises energy efficiency while enhancing site security, activating light only when required.

For indoor applications, a 24-hour power availability option ensures continuous illumination, including applications where continuous light is required such as shipping containers, tunnels and green safety shower lights.

Design Your Corso Solar System In 3 Simple Steps

Corso solar lighting systems are engineered to deliver up to 72 hours of autonomy, providing dependable performance in off-grid and low-sunlight environments.

To protect long-term battery life, Tigerlight systems are designed to avoid frequent deep discharges. This is achieved by precisely balancing solar panel capacity, battery size, light output, and operating hours for each installation.

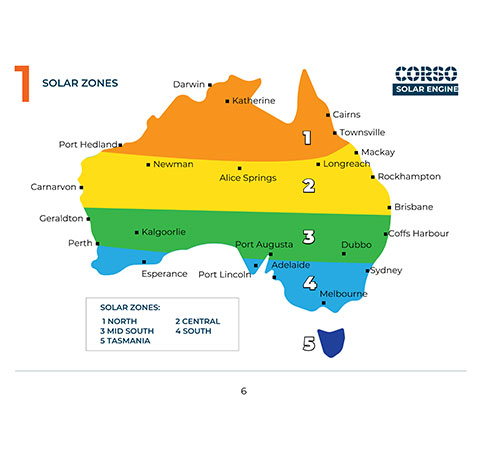

Step 1: Know Your Location

Solar performance varies across Australia. Northern regions receive higher average solar exposure than southern states, directly influencing system output and sizing.

Tigerlight designs every Corso system using Australian solar zone data to ensure reliable year-round performance.

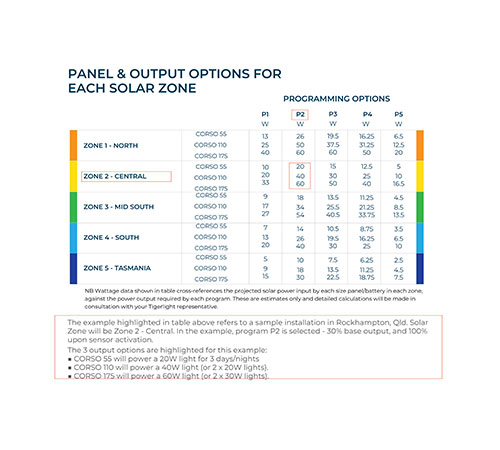

Step 2: Set the Light Behavior

Corso Solar Engines and compatible Tigerlight light heads are fully programmable to suit how the site is used.

Operating hours, output levels, and sensor response are configured to match traffic patterns, safety needs, and security requirements, while maintaining battery autonomy.
