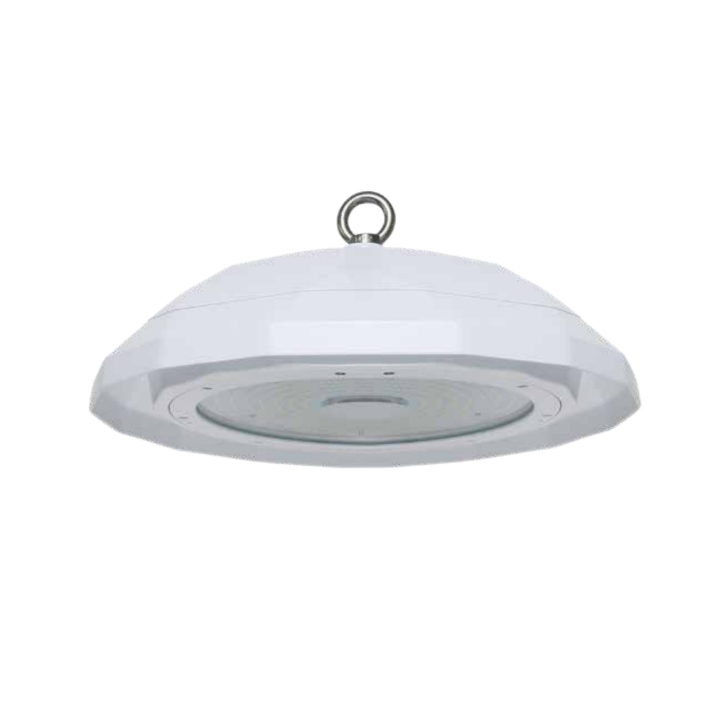

IP69K Food Grade High Bays
The Food-Grade Highbay (IP69K) is a high-performance, HACCP-certified luminaire engineered for hygiene-critical food, pharmaceutical, and washdown environments where hygiene, cleanability, durability, and efficiency are essential.
Its smooth-surface design supports food-premises compliance while delivering 22,500 lumens at 150 lm/W, providing bright, uniform illumination for processing, inspection, and production areas.
Rated IP66 and IP69K with IK10 impact protection, the luminaire is purpose-built to withstand high-pressure washdowns, steam cleaning, and harsh industrial conditions.
Options
150 W delivering 22,500 lm at 150 lm/W, using Lumiled LEDs and a Philips Xitanium driver.
100–277 VAC, PF ~0.95, non-dimmable, with 10 kV / 6 kV surge protection.

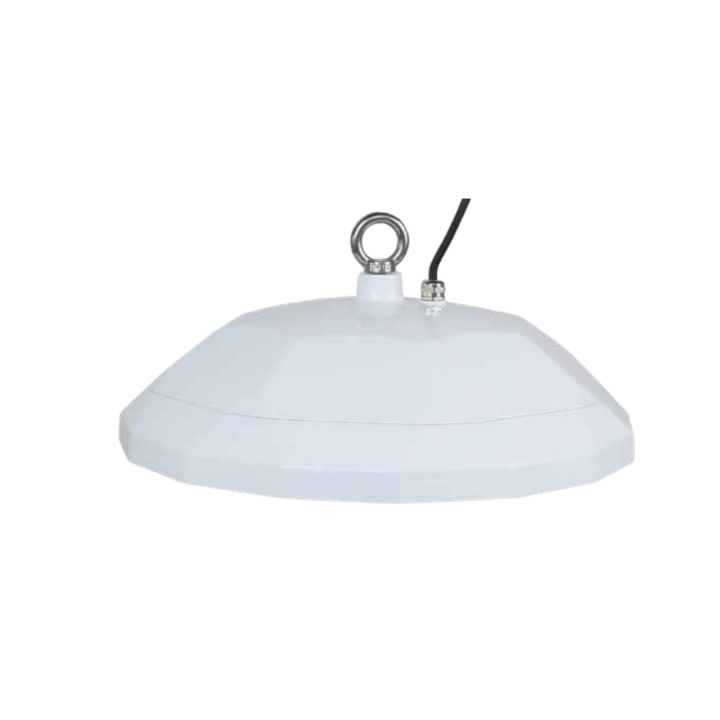

Eye-bolt suspension mounting for high bay applications in food processing and hygiene-controlled facilities.
Overall dimensions: 434 mm Ø × 192 mm H. Weight: 5.58 kg.
Die-cast aluminium housing with polycarbonate lens, finished in white powder coating to support cleanability in food premises.
Rated IP66 and IP69K for washdown protection and IK10 for impact resistance in harsh industrial environments
Key Features
- High Output, High Efficiency: Delivers 22,500 lm from a 150 W system at 150 lm/W, optimised for large-scale food-grade applications
- HACCP-Certified Food-Safe Design: Patented construction certified by HACCP International, supporting hygiene and cleanability requirements for food premises.
- IP66 & IP69K Washdown Protection: Fully sealed against dust ingress and high-pressure, high-temperature washdown procedures.
- High-Clarity Light Output: 5000 K, CRI >80, 115° distribution, and SDCM <3 ensure consistent colour rendering and uniform coverage.
- Premium Components & Electrical Protection: Philips Xitanium driver, Lumiled LED chipset, PF ~0.95, and 10 kV / 6 kV surge protection for long-term reliability.
What is IP69K?
IP69K in food-safe lighting means the luminaire is fully sealed against dust and can withstand high-pressure, high-temperature wash-downs (typically up to ~80 °C), which are common in food processing and hygiene regimes.
This prevents water, chemicals, and bacteria ingress during aggressive cleaning, reducing contamination risk.
As a result, IP69K-rated lights are well suited to HACCP-compliant environments where frequent sanitisation is mandatory.

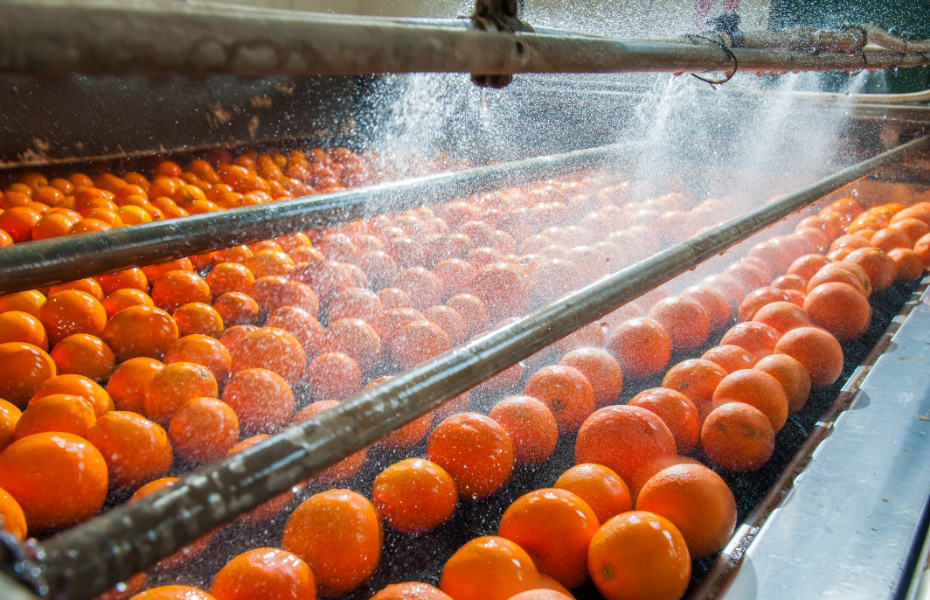

Important Installation Note – Food Premises
For food premises installations, the luminaire must be installed in accordance with hygiene regulations relating to cleanability. HACCP International recommends a minimum 100 mm clearance between the fitting and the ceiling or horizontal surface, as referenced in AS 4674 – Design, Construction and Fit-out of Food Premises.
