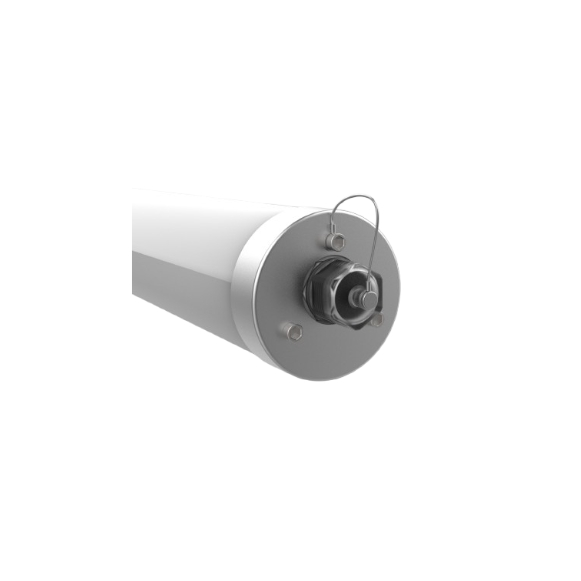

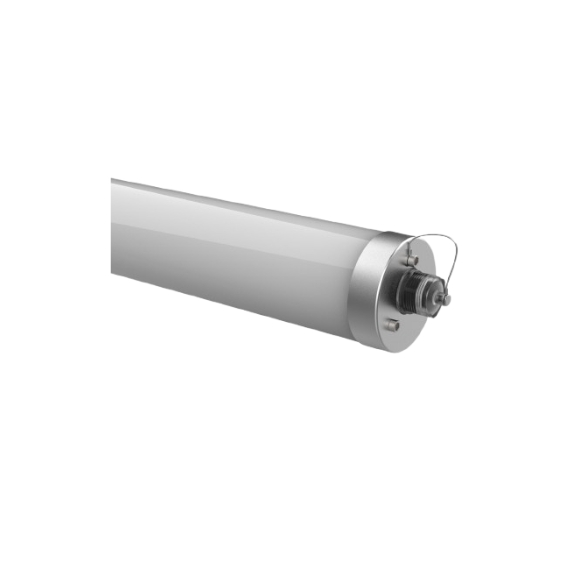

IP69K Food-Grade Emergency Batten
The IP69K Food-Grade Emergency Batten is a high-performance, HACCP-certified luminaire designed for food processing, pharmaceutical and industrial environments where hygiene, durability and emergency compliance are essential. Engineered for washdown and food-safe facilities, it delivers reliable everyday illumination while ensuring safe egress during power failure.
Rated IP66 and IP69K, the batten is built to withstand high-pressure, high-temperature washdowns, steam cleaning and aggressive detergents. Stainless steel 316 end caps and a PMMA acrylic diffuser provide excellent corrosion resistance, cleanability and long-term performance in hygiene-critical and corrosive environments.
An integrated emergency option (available on the 1200 mm model) delivers 824 lumens at 5 W in emergency mode and is fully compliant with AS 2293.3 and IEC 60598-2-22. The system uses LiFePO₄ battery technology and includes a self-test function with LED indicator, simplifying testing and maintenance. With a slimline design, high efficacy and certified emergency performance, this batten is ideal for food-safe facilities, washdown zones and mission-critical industrial applications.
Customisable options
- 600 mm – 20 W – 3200 lm (PEFG0600NW)
- 1200 mm – 36 W – 5700 lm (PEFG1200NW)
- CCT 5000 K
- CRI > 80
- Efficacy ~160 lm/W
- Light distribution 120°
- PF > 0.93
- PMMA acrylic diffuser with stainless-steel 316 end caps
- Clamp-style stainless-steel bracket system
- Diameter 70 mm, weight 1.0 kg (600 mm) / 1.7 kg (1200 mm)
Supplied with 1 m 3-core flex cable for standard version
Key Features
- High Output with Excellent Efficiency
Power options from 20 W at 600 mm to 36 W at 1200 mm delivering 3,200 to 5,700 lumens with efficiency near 160 lumens per watt, ideal for food processing, packaging and refrigerated environments. - Maintained Emergency function
LiFePO₄ battery, 5 W emergency output and self-test button with LED indicator light. - Food-Safe PMMA Construction
PMMA acrylic diffuser with 316 stainless-steel end caps and a clamp-style mounting system designed for hygiene, durability and easy cleaning in HACCP-controlled facilities. - IP66 and IP69K Washdown Protection
Certified IP66 and IP69K for resistance to high-pressure, high-temperature water jets and corrosive detergents used in food-safe washdown procedures. - Clean, High-Clarity Light Output
120 degree beam distribution with CRI greater than 80 and 5000 K colour temperature providing bright, clear illumination for inspection, processing and compliance-led workspaces. - Reliable Electrical and Thermal Stability
220-240 VAC operation and a thermal operating range from –20 °C to +35 °C. - HACCP Certified and Fully Compliant
Certified by HACCP International, approved to SAA and RCM, and compliant with AS 4674 spacing and hygiene standards, ensuring suitability for food production and cold-storage environments.
