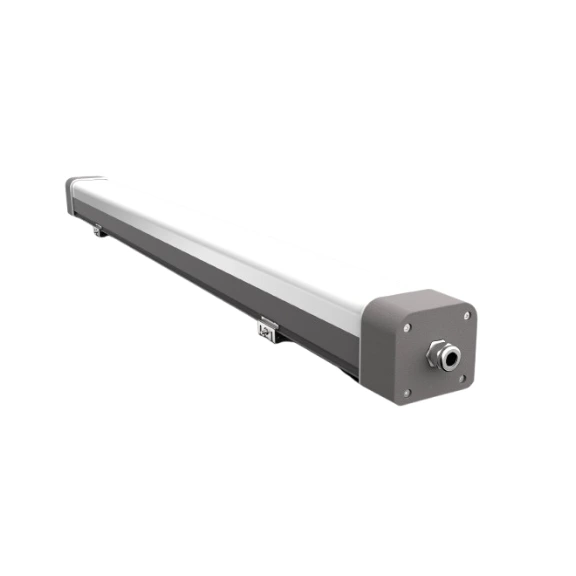

IK10 Silverback Emergency Batten
The IK10 SilverBack Emergency Batten adds a maintained emergency system to the proven SilverBack platform, ensuring safety and compliance in mission-critical environments.
Built to AS 2293.3 and IEC 60598-2-22, it combines LiFePO₄ battery technology and rugged IK10 / IP66 protection to deliver continuous illumination and emergency backup when it matters most.
Engineered for industrial, transport, and infrastructure facilities, this fitting guarantees compliance, reliability, and fast installation through Tigerlight’s signature quick-connect, linkable design.
Customisable options
1200 mm – 40 W standard / 5 W emergency (PESB120040K-EM)
Maintained mode with automatic self-test and manual test button with LED indicator
- Cast aluminium body RAL 7035 grey with polycarbonate diffuser
- Dual M20 nickel-plated brass glands for linkable installation
- Stainless-steel mounting brackets supplied
Dual M20 entry for 2.5 mm² cable connection
Key Features
- High Performance with Maintained Emergency Output
40 W in standard mode delivering 6,000 lumens plus 5 W emergency output delivering 637 lumens at approximately 150 lumens per watt efficacy. - Maintained Emergency System
Maintained emergency operation with integrated test button and clear LED status indicator for fast verification of system readiness. - Long Life LiFePO₄ Battery Technology
6.4 V 3,000 mAh LiFePO₄ battery with 19.2 Wh capacity for reliable emergency runtime, built-in testing and extended service life. - Industrial-Grade Construction with Full Environmental Protection
Cast aluminium housing in RAL 7035 grey with polycarbonate diffuser, rated IP66 and IK10 for dust-tight, water-resistant and high-impact environments. - Certified Compliance and Long-Term Reliability
Certified to AS 2293.3 and IEC 60598 2 22 with SAA and RCM approval, greater than 50,000 hours service life and supported by a 3 year warranty.

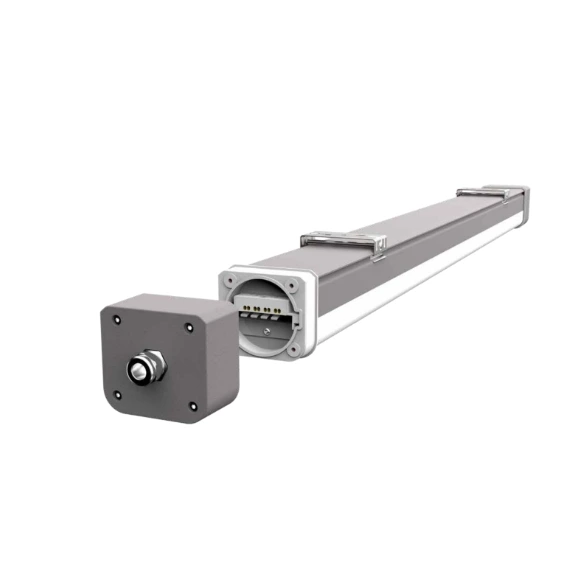

Quick-Connect, Installer-Ready Design
The batten features a quick-connect terminal block positioned at the end of the fitting, providing easy access for fast, trouble-free installation. Designed to save time on site, the system supports simple linking between fittings, with M20 cable glands supplied at both ends to allow clean, secure and efficient cable-through wiring.
