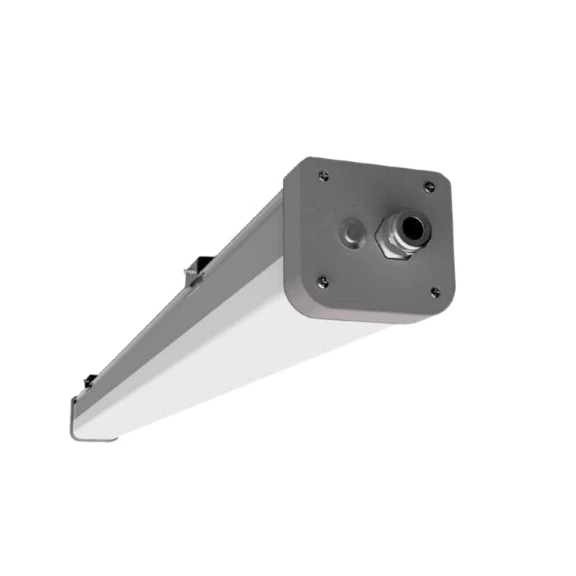

IK10 Silverback Batten
The IK10 SilverBack Batten is a heavy duty, impact resistant LED luminaire engineered for maximum durability, safety and long-term performance in demanding industrial, transport and commercial environments. Rated IK10 for extreme impact protection and IP66 for total protection against dust and powerful water ingress, it is purpose built for sites where reliability is critical, and maintenance access is limited.
Constructed with robust cast aluminium end caps with a streamlined form, the SilverBack delivers both mechanical strength and high-quality performance. It produces up to 6,400 lumens with efficiency approaching 160 lumens per watt, ensuring powerful, energy-efficient illumination across workshops, loading docks, car parks and infrastructure corridors.
Engineered for Australian operating conditions, the SilverBack Batten features a fast-connect terminal system and linkable cable glands that simplify installation and support clean, dependable wiring on-site. The result is a high-impact, high-efficiency lighting solution that delivers strength, speed of installation, and consistent performance across the toughest environments.
Customisable options
- 600 mm – 20 W – 3000 lm (PESB060040K)
- 1200 mm – 40 W – 6400 lm (PESB120040K)
- CCT 4000 K
- CRI > 80
- Light distribution 120°
- PF > 0.9
- THD < 20 %
- Cast aluminium body (RAL 7035 grey) with polycarbonate diffuser
- Nickel-plated M20 glands both ends for linkability
- Stainless-steel mounting brackets included
Dual M20 entry for 2.5 mm² cable, linkable configuration
Key Features
- High Output with Excellent Efficiency
20 W at 600 mm and 40 W at 1200 mm delivering 3,000 to 6,400 lumens at approximately 160 lumens per watt. - Heavy-Duty Cast Aluminium Construction
Cast aluminium housing in RAL 7035 grey with a high strength polycarbonate diffuser for long service life and impact resistance. - IP66 and IK10 Protection
Certified protection against dust, high pressure water jets and mechanical impact for harsh industrial and outdoor environments. - High-Quality Performance
120 degree beam with CRI greater than 80 and SDCM less than 3 for consistent colour and uniform illumination. - Fast and Reliable Installation System
End-mounted quick connect terminal with dual M20 nickel plated brass cable glands for clean, efficient and linkable installation

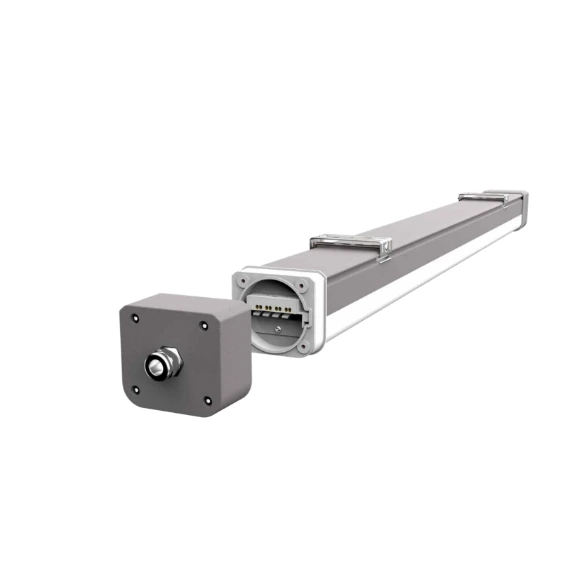

Quick-Connect, Installer-Ready Design
The batten features a quick-connect terminal block positioned at the end of the fitting, providing easy access for fast, trouble-free installation. Designed to save time on site, the system supports simple linking between fittings, with M20 cable glands supplied at both ends to allow clean, secure and efficient cable-through wiring.
