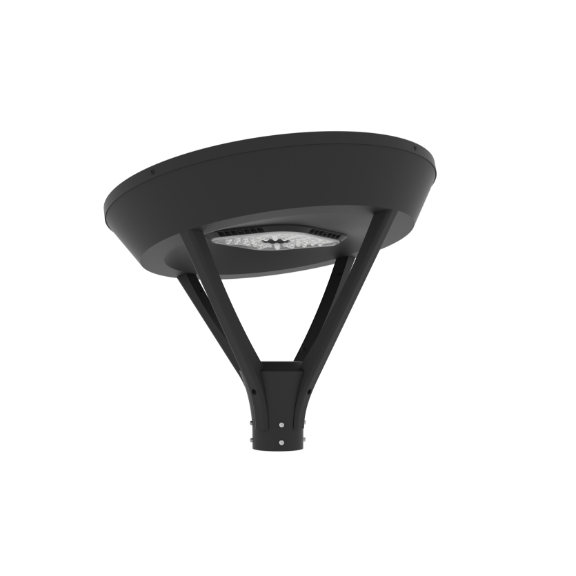

Corso Pole-Top

The Corso Solar Pole-Top Light delivers a refined balance of design, performance and reliability for public spaces and pathways. Its large circular solar panel is tilted to maximise solar energy capture while maintaining a clean architectural form. Operating completely off-grid, it provides consistent, high-quality illumination without the need for trenching, cabling or grid connection. Built for endurance, the Corso Pole-Top combines efficient energy generation, long battery life and intelligent control via an integrated motion sensor, all within a single, fully integrated unit.

Request IES Files

Options

Nominal output of 7 W (adjustable to 10 W in northern installations by the supplier).
Includes a 33 W monocrystalline panel paired with a 230 Wh LiFePO₄ battery (12.8 V, > 2 000 cycles) and MPPT controller with integrated Battery Management System (BMS).
Programmable operating modes allow bright and dim profiles for energy optimisation.

Designed for pole-top installation on a 78 mm internal-diameter spigot (poles not included).
Overall dimensions 600 mm diameter × 550 mm height. Weight 9.9 kg.

Constructed from anodised aluminium with a corrosion-resistant powder-coated finish in RAL 9017 black.
Rated IP65 for dust and moisture protection and IK08 for impact resistance in public and industrial environments.

Key Features

Fully Integrated Solar Lighting System: A complete solar luminaire that combines a 33 W Grade A monocrystalline panel, a 230 Wh LiFePO₄ battery and a programmable MPPT controller for reliable off-grid performance.
High-Efficiency LED Output: Lumiled LED chipset delivering 1,150 lumens at 7 W with efficacy above 160 lumens per watt, and up to 1,600 lumens in high solar gain northern regions.
Warm 3,000 K Light with High Visual Comfort: Colour temperature of 3,000 K with CRI greater than 80 provides comfortable, clear illumination for pathways, parks and public spaces.
Low Glare Design: Zero upward light ensures full alignment with dark sky and obtrusive light standards, reducing environmental impact and light spill.
Smart Motion Detection and Dusk to Dawn Control: Microwave motion sensor with 360-degree coverage and a 10 metre radius at 8 metre mounting height, supporting dusk-to-dawn activation and dual mode operation with 30 percent standby brightness and full output on motion.
Durable Outdoor Construction: Powder-coated aluminium housing in RAL 9017 black rated IP65 and IK08 for dust, moisture and impact resistance, with reliable operation from minus 10 °C to 70 °C
