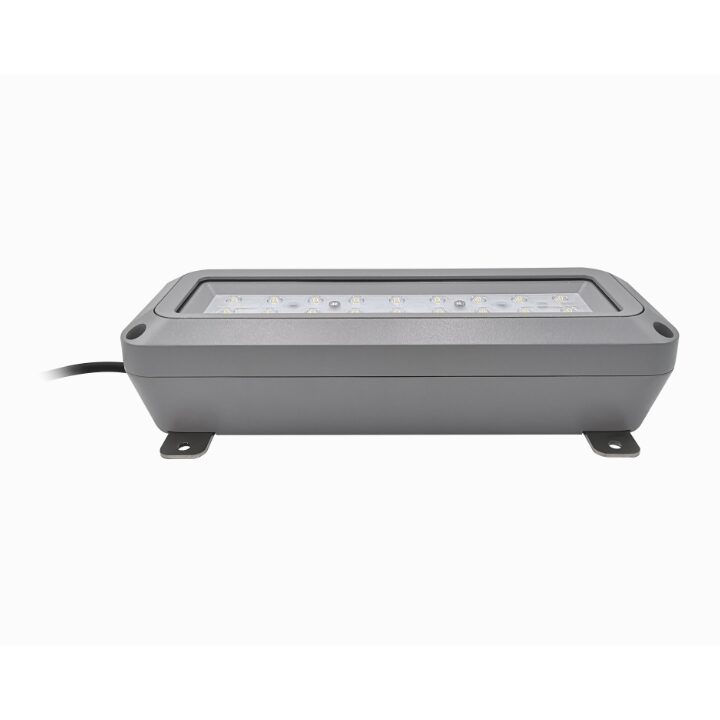

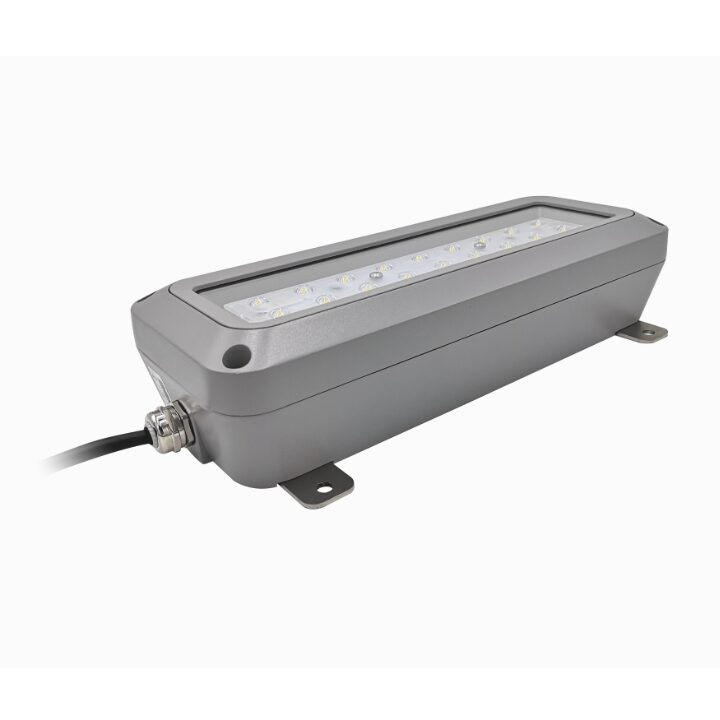

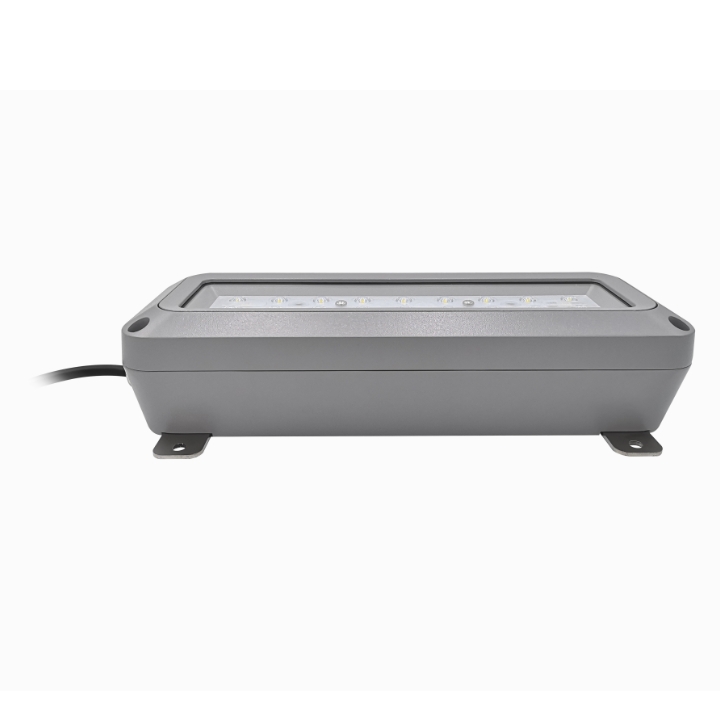

Bulkhead

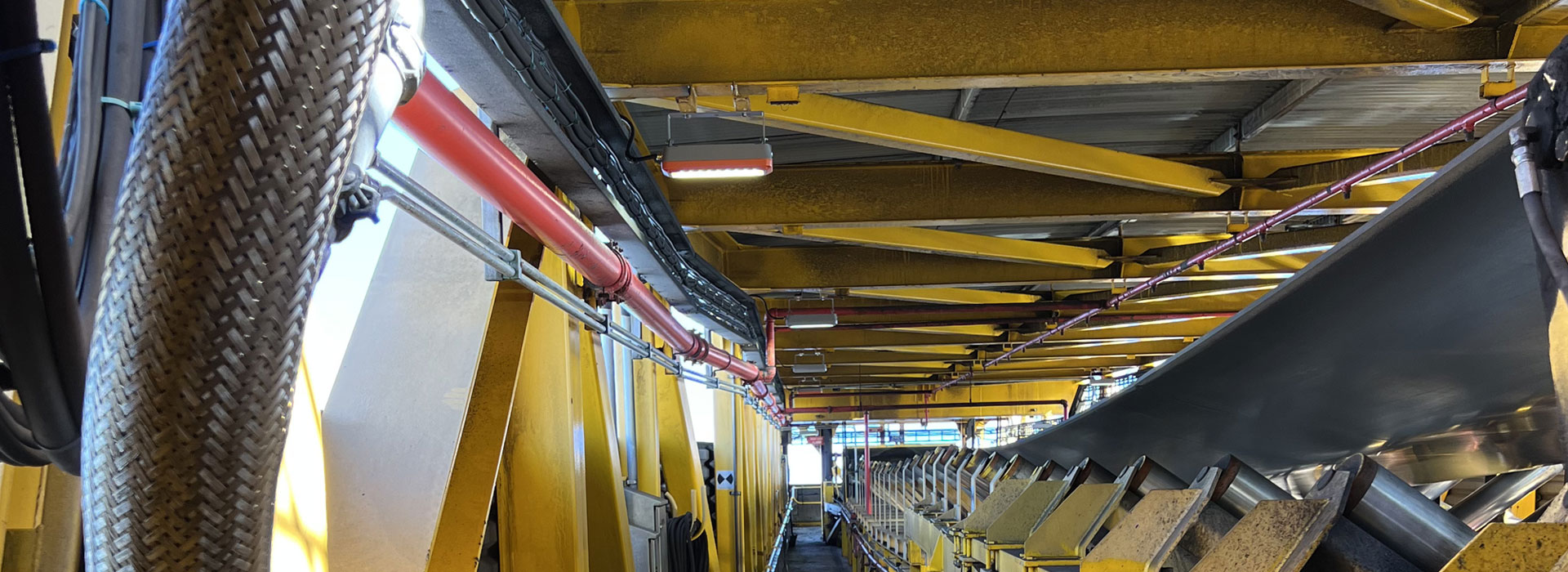

What sets the Bulkhead apart is its rare combination of controlled lumen output in a true heavy-duty bulkhead format, delivering up to 6,820 lumens with an efficacy exceeding 150 lm per watt for powerful illumination with lower operating costs. Engineered for harsh environments where reliability, impact resistance and consistency are critical, the Bulkhead features an IP66 and IK10 rated construction for long-term durability in washdown areas, plant rooms, corridors, stairwells and exposed industrial sites. Available in 40 W standard with nominal 30 W or 50 W output via an internal switch, it is supported by a range of precision optical lenses for tailored wide or narrow beam control to suit each application.
Customisable options
Choose from 18 different photometric lensing options including asymmetric & symmetric
Colour Rendering Options >70, >80, >90
Select your preferred CCT to suit application from 2200k – 5000k and coloured LED such as Green and Amber (Turtle Friendly).
Optional U-Bracket for wall mounting and tilting
Choose from a range of standard RAL colours including Black Grey, White, or custom colours available.
Key Features
- High Output with Exceptional Efficiency: Nominal Output – 30 W to 50 W delivering up to 6,820 lumens with up to 150 lm per watt, ensuring maximum light output with lower running costs.
- Linkable via included second cable gland.
- Premium LED and Driver Platform: Nichia high-output LED chipset paired with a proven Philips Xitanium dimmable driver, delivering superior reliability, consistency and controllability.
- True Industrial Protection: IP66 and IK10 ratings provide complete resistance to dust, water, moisture, and mechanical impact in harsh environments.
- Advanced Optical Control: T5W wide-beam lens standard, with optional Type 2, 3 and 4 optics for precise light distribution across different applications.
- Wide Thermal and Electrical Operating Range: Operates from minus 40 to plus 50 degrees Celsius, with 120 to 277 VAC input, power factor greater than 0.95 and 20 kA surge protection for stable performance in demanding sites
Our Other Products

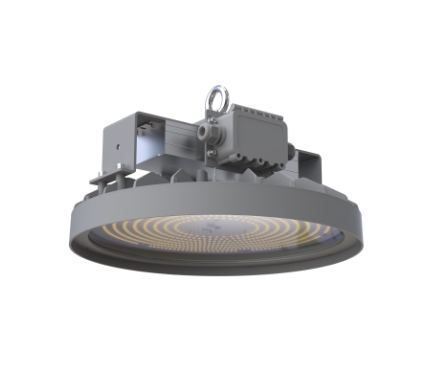

High Bay /
Low Bay
Floodlights

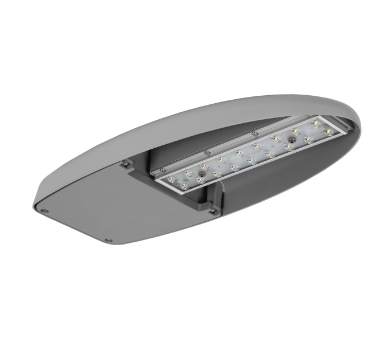

MAKO and
Bulkhead Area
Lighting

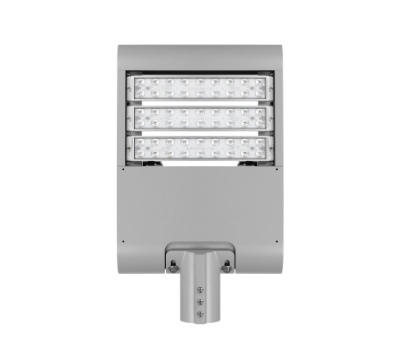

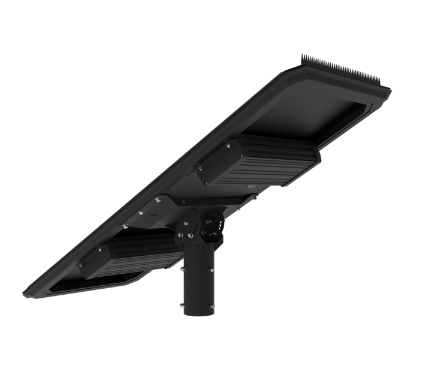

Street and
Roadway Lighting

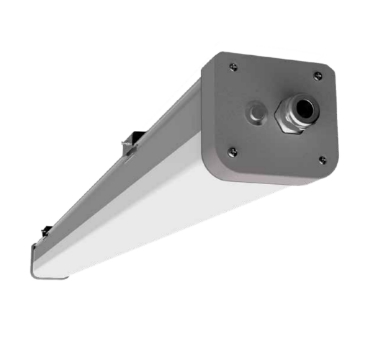

Battens
